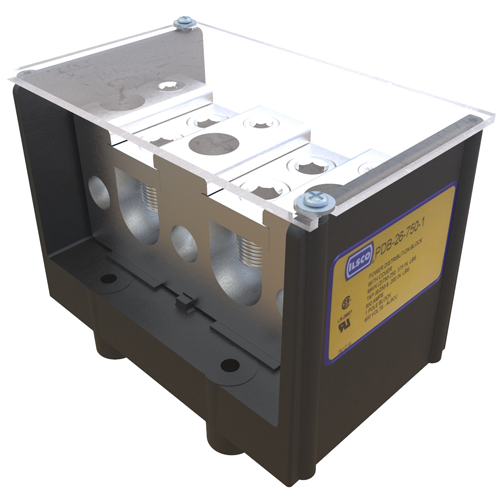

Product image for Ilsco PDB-26-750-1 Power Distribution Block, Lay-In, Dual Rated, Line Conductor Range 750-250, Load Range 250-6, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco PDB-26-750-1 Power Distribution Block, Lay-In, Dual Rated, Line Conductor Range 750-250, Load Range 250-6, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover

Manufacturer: Ilsco | Catalog # PDB-26-750-1 | QED Part # 82421
$685.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 3 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 250 kcmil, Copper/Aluminum Secondary Conductor 250 kcmil - 6 Str, 8 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 1/4 Internal Hex, rated for 600 V, primary color Black, 1 poles, 2 ports per pole primary, 6 ports per pole secondary,

Technical Information

Amperage
950 Amp
Applications
Tap Connector
Conductor Size
250-750 kcmil/6 AWG-250 kcmil
Connection Type
Screw Terminal
Enclosure
Valox
Material
Aluminum
Number of Conductors
8
Number of Poles
1 Pole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669711448
Color
Black
Finish
Tin Plated
Product UPC
78366971144
