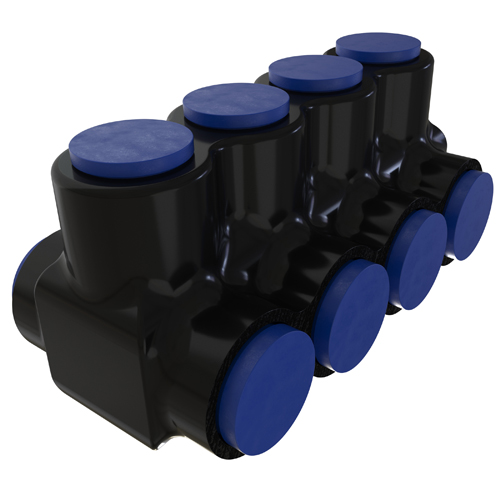

Product image for ILSCO PBTD-4-750-F INS (4) 750-4/0,500FX,4/0M,535DLO TULCSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

ILSCO PBTD-4-750-F INS (4) 750-4/0,500FX,4/0M,535DLO TULCSA

Manufacturer: Ilsco | Catalog # PBTD-4-750-F | QED Part # 4963467
$375.94 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Nimbus4Flex Insulated Flexible Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 4/0 Str, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, flex conductor range 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, rated for 600 V, primary color Black, 1 poles,

Technical Information

Applications
Insulated Flexible Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Flex,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
4
Number of Ports
4
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PBTF:FLEX/INS BLK
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus4Flex

General Product Info

12-Digit UPC
783669724028
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366972402
Weight
2.132 lb

Dimensions

Height
3.26 Inch
Length
6.46 Inch
Width
3.405 in
