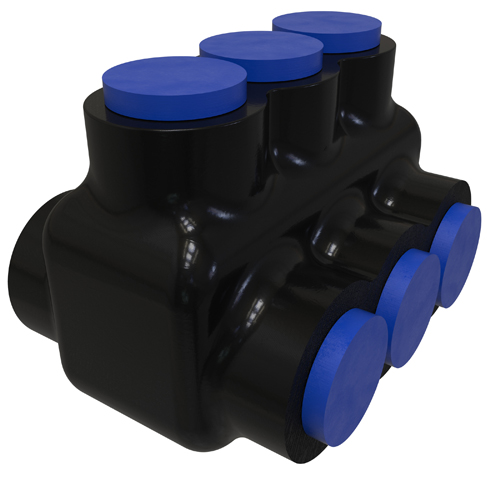

Product image for ILSCO PBTD-3-1/0-F INS (3) 1/0-14,1-14 FX 2-14M TUL CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

ILSCO PBTD-3-1/0-F INS (3) 1/0-14,1-14 FX 2-14M TUL CSA

Manufacturer: Ilsco | Catalog # PBTD-3-1/0-F | QED Part # 4963170
$90.21 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Nimbus4Flex Insulated Flexible Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 3 conductors, 3 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, flex conductor range 1-14 H,I,K,DLO 2-14 M, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
CU:170;AL:135
Applications
Insulated Flexible Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Flex,Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
3
Number of Ports
3
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PBTF:FLEX/INS BLK
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus4Flex

General Product Info

12-Digit UPC
783669712568
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366971256
Weight
0.214 lb

Dimensions

Height
1.627 Inch
Length
2.248 Inch
Width
1.825 in
