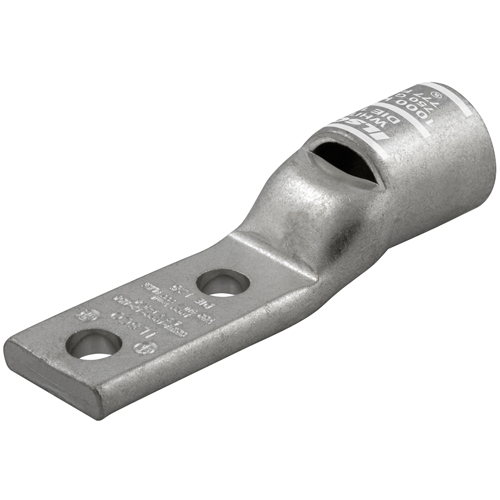

ILS CSWN-2/0-14-58 CU CMP NARROW 2/

Manufacturer: Ilsco | Catalog # CSWN-2/0-14-58 | QED Part # 4963108
$69.56 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, narrow tang, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.625 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 2/0 Str, Contains DE-OX®, sight window, Square tang end, flex conductor range 1/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Black, primary color Silver, die index I-45,

Technical Information

Applications
Copper Compression Lug
Bolt Size
1/4 IN
Conductor Size
2/0 AWG
Material
Copper
Size
L:2.583;W:0.547;H:0.597 IN
Standard
CSA File Number: LR-29601,NEBS Rating: LEVEL 3,UL File Number: E6207,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
CSWN:SHORT NARROW W/SIGHT
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669685497
Color
Silver
Product UPC
78366968549
