ILS NBAS-004-2-B AL MEC (4) 4-14 (2

Manufacturer: Ilsco | Catalog # NBAS-004-2-B | QED Part # 4958018
$13.16 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

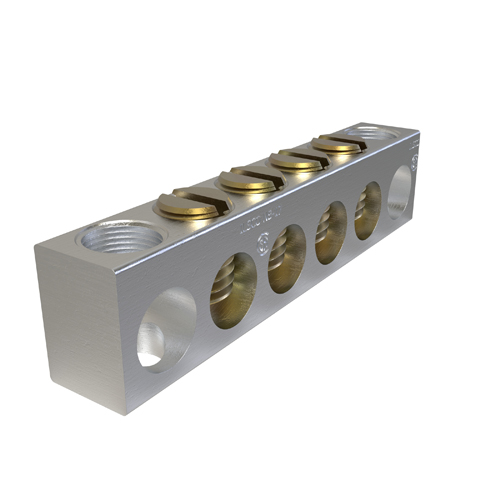

ILSCO Neutral Bar, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size #10 in, mounting hole spacing 1.56 in., UL 486A/B Recognized, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, 4 conductors, 6 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Either Copper or Aluminum Conductors
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Screw
Material
Aluminum
Mounting Hole Size
0.206 in
Number of Conductors
4
Number of Holes
2 Hole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Type
Dual Rated
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669005554
Color
Silver
Finish
Electro-Tin Plated
Product UPC
78366900555
Weight
0.026 lb

Dimensions

Height
0.437 Inch
Length
1.92 Inch
Width
0.312 in
