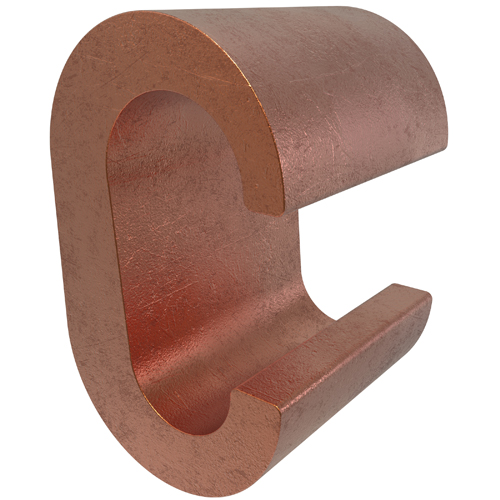

ILSCO ULT-11-Z CU CMP (R)3/0SOL-4/0

Manufacturer: Ilsco | Catalog # ULT-11-Z | QED Part # 4957985
$23.24 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Permaground Copper Compression Grounding C Crimp, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 4/0 Str - 3/0 Str and 4/0 Sol - 3/0 Sol, Copper Secondary Conductor 2/0 Sol - 1/0 Sol and 2/0 Str - 1/0 Str, rated for 35 kV, primary color Copper, die index D3,

Technical Information

Applications
Copper Compression Grounding C Crimp
Conductor Material
Copper
Conductor Type
Solid,Stranded
Direct Burial?
Yes
Material
Copper
Size
L:1;W:1.075;H:1.628 IN
Temperature Rating
90 degrees C
Type
ULT:COPPER C CRIMPS
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Permaground

General Product Info

12-Digit UPC
783669930863
Color
Copper
Product UPC
78366993086
Weight
0.285 lb

Dimensions

Height
1.628 Inch
Length
1 Inch
Width
1.075 in

Certifications and Compliance

Country of Origin
India
