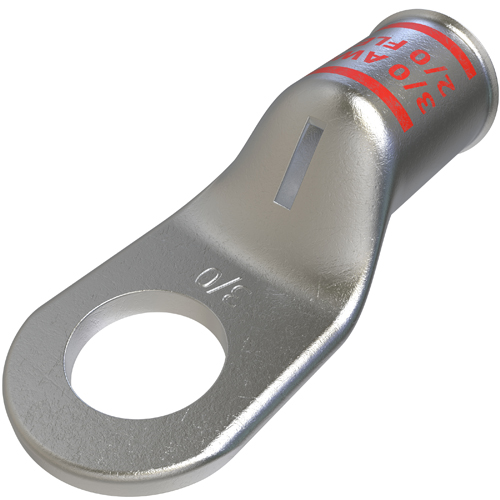

ILS CRA-2/0-12M CU CMP 2/0 1/2 T UL

Manufacturer: Ilsco | Catalog # CRA-2/0-12M | QED Part # 4953942
$9.73 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Mining Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 3/0 Str, sight window, Round tang end, flex conductor range 2/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Orange, primary color Silver, die index I-50,

Technical Information

Applications
Copper Mining Lug
Barrel Length
0.675 in
Barrel Type
Standard
Bolt Size
1/2 IN
Color Coding
Orange
Conductor Material
Copper
Conductor Type
Flex,Stranded
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.522 in
Number of Holes
1 Hole
Size
L:2.16;W:0.895;H:0.69 IN
Temperature Rating
90 degrees C
Type
CRAM:MINING LUGS
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669098341
Color
Silver
Product UPC
78366909834
Weight
0.076 lb

Dimensions

Height
0.69 Inch
Inside Diameter
0.511 in
Length
2.16 Inch
Outside Diameter
0.63 in
Width
0.895 in

Certifications and Compliance

Country of Origin
India
