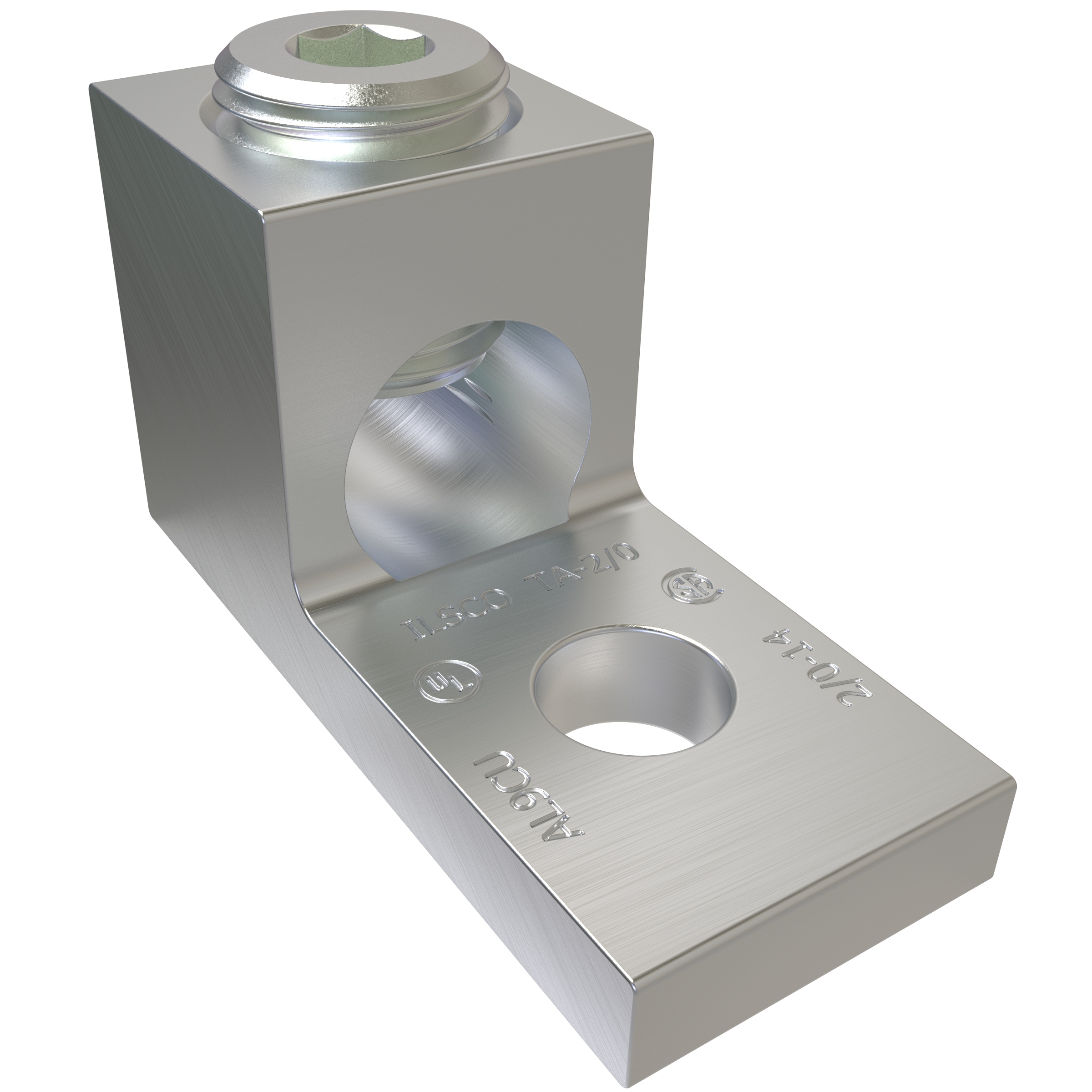

Product image for ILS TA-2/0-B2 AL MECH 2/0-14 17/64
Image thumbnail 0
Image thumbnail 1
To:
CC:

ILS TA-2/0-B2 AL MECH 2/0-14 17/64

Manufacturer: Ilsco | Catalog # TA-2/0-B2 | QED Part # 4952623
$21.03 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 3/16 Internal Hex, rated for 35 kV, primary color Silver, bag quantity 2, 1 poles,

Technical Information

Applications
Mechanical Lug, One Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Number of Conductors
1
Number of Holes
1 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TAB:1 WIRE AL/CU BAG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669177503
Color
Silver
Finish
Tin Plated
Product UPC
78366917750
Weight
0.089 lb

Dimensions

Height
0.794 Inch
Length
8.4 Inch
Width
3 in
