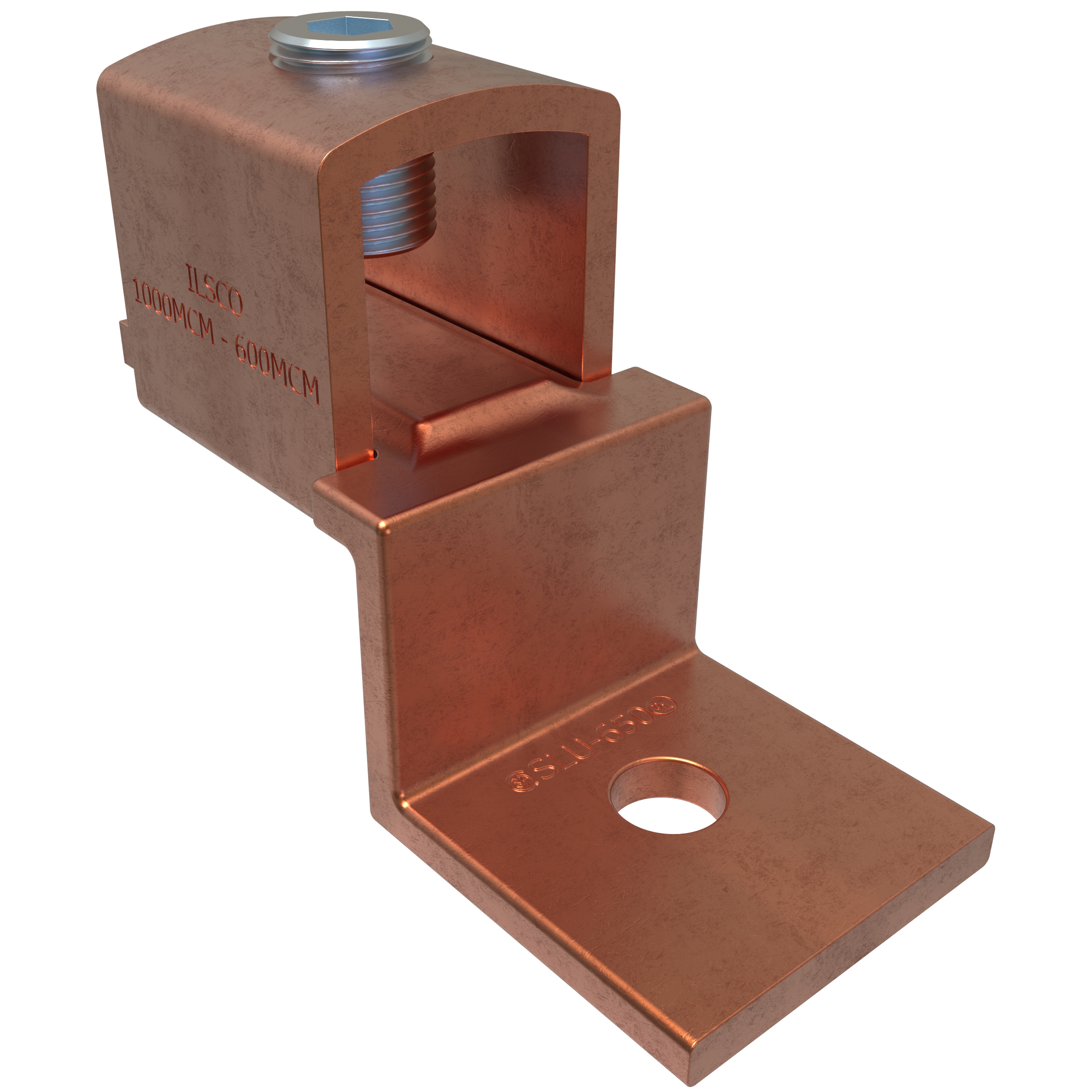

Image thumbnail 1
To:
CC:

Ilsco SLU-650 Copper Mechanical Lug Offset, Conductor Range 1000-600, 1 Port, 1 Hole, 1/2in Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # SLU-650 | QED Part # 4952153
$131.99 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 1000 kcmil - 600 kcmil, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Bolt Size
1/2 in
Conductor Material
Copper
Conductor Size
600-1000 kcmil
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.531 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Tongue Type
Offset or Straight
Type
SLU, Offset Tongue, Straight
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669837032
Color
Copper
Finish
Electrolytic
Product UPC
78366983703
Weight
2.258 lb

Dimensions

Height
3.194 Inch
Length
4-5/8 Inch
Width
2 in
