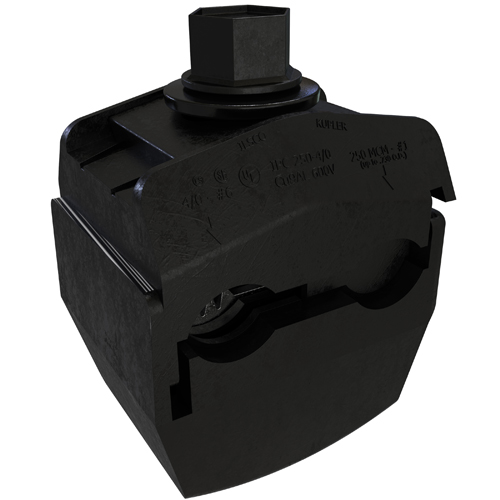

ILSCO IPC-250-4/0-B UL Listed 250 MCM 1 AWG Main Range 4/0 - 6 AWG Tap Range Insulation Piercing Connector

Manufacturer: Ilsco | Catalog # IPC-250-4/0-B | QED Part # 4952102
$99.52 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet MDM Safety Data Sheet
KUP-L-Tap Insulation Piercing Connector, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 1 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 2 conductors, Nylon insulation, Drive Type Main 5/8 External Hex, rated for 600 V, primary color Black, bag quantity 1, 1 poles,

Technical Information

Amperage
CU:260;AL:205
Applications
Insulation Piercing Connector
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
IPCB:INSULATION PIERCE BG
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
KUP-L-Tap

General Product Info

12-Digit UPC
783669532920
Color
Black
Finish
Tin Plated
Product UPC
78366953292
Weight
0.719 lb

Dimensions

Height
1.87 Inch
Length
14 Inch
Width
6 in
