ILS AU-1000-2N AL MEC (2)1000-500 9

Manufacturer: Ilsco | Catalog # AU-1000-2N | QED Part # 4951962
$153.48 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

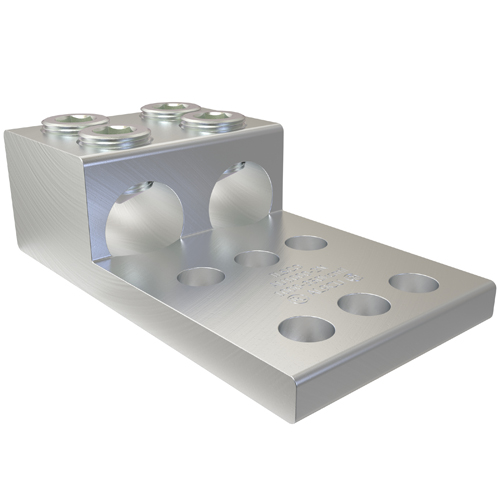

ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,6 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1000 kcmil - 500 kcmil, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, Two Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Conductors
2
Number of Holes
6 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
AU:2 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669007961
Color
Silver
Finish
Tin Plated
Product UPC
78366900796
Weight
1.887 lb

Dimensions

Height
1.813 Inch
Length
5.97 Inch
Width
3.25 in
