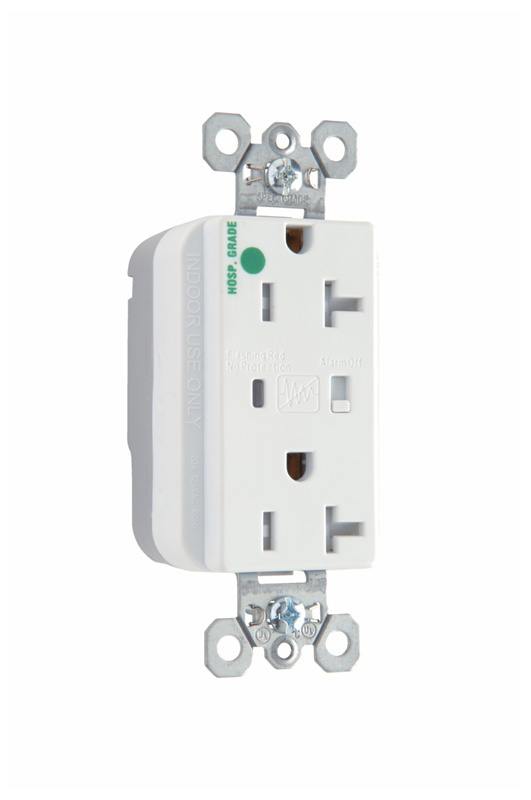

Pass & Seymour PTTR8300-WSP PlugTail™ Hospital Grade Tamper-Resistant Surge Protective Duplex Receptacle, 20A 125V - White

Manufacturer: Legrand Pass & Seymour | Catalog # PTTR8300WSP | QED Part # 4908895
$195.26 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
PlugTail information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial,Multi-Dwelling Unit,Residential
Connection Type
Built-In Connector
Frequency
60 Hz
Grade
Hospital,Specification
Indicator
Audible Alarm,LED
Indoor Outdoor
Indoor
Material
Thermoplastic
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees F
Outlet Type
Hospital Grade,Surge Protected
Size
.94" Depth x 1.75" Width x 3.82" Height
Tc Connection
Built-In Connector
Type
Duplex
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007020595
Class
IG
Color
White
Product Series
PlugTail
Product UPC
78500702059
UNSPSC
39121406

Dimensions

Depth
1.4 Inch
Height
3-3/4 Inch
Warranty Length
1 yr
Width
1.70 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
