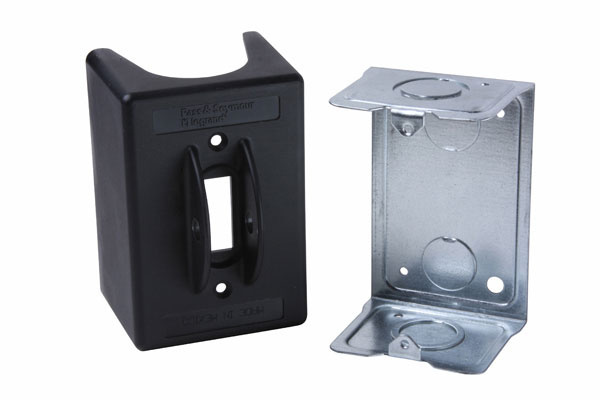

Pass & Seymour 7806-P NEMA 1 Nylon Enclosure w/ 1/2" & 3/4" Knockouts

Manufacturer: Legrand Pass & Seymour | Catalog # 7806P | QED Part # 4908767
$26.22 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
NEMA 1 Nylon Enclosure with 1/2inch & 3/4inch Knockouts

Technical Information

Amperage
30 Amp
Applications
Industrial
Contact Rating
30amp, 600vac
Enclosure
NEMA 3R aluminum
Indoor Outdoor
Indoor,Outdoor
Material
Nylon
Mounting Type
Backside Screw
NEMA Rating
NEMA 1
Number of Poles
sp
Size
3.3"
Tc Connection
Side & Back Wired
Type
2-Pole
Voltage
600 Volt
Wattage
1 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007780659
Color
Black
Finish
Matte
Product UPC
78500778065
Used With
Manual Controllers Switch

Dimensions

Depth
71.12 mm
Height
99 mm
Warranty Length
1 yr
Width
71.12 mm

Certifications and Compliance

Country of Origin
Mexico
Features
  • High horsepower rating of 20HP. Compact design. Gull-wing shaped brass terminal pressure clamps. Constructed of glass-reinforced thermoplastic. Two-point contact arms. One-piece contact carrier.
  • UL508 and cULus Listing of individual device and assembled device within enclosure. Heavy-duty zinc-plated steel strap. Two brass rivets secure strap to housing.
  • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals. Oversized silver alloy contacts.
  • 2-3/4 inch hubs (7812-EX and 7813-EX). 2-1/2 inch knockouts on back and 2-1/2 inch -3/4 inch knockouts on top and bottom (7812-P, 7813-P, 7806-P). 2-1/2 inch knockouts on bottom and back (7832 and 7833).
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
