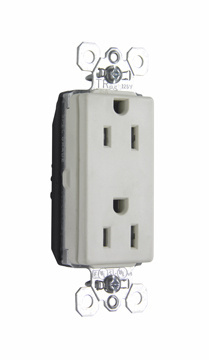

Product image for Pass & Seymour PTTR26262-LA PlugTail™ Tamper-Resistant Decorator Spec Grade Duplex Receptacle, 15A 125V - Light Almond
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour PTTR26262-LA PlugTail™ Tamper-Resistant Decorator Spec Grade Duplex Receptacle, 15A 125V - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # PTTR26262LA | QED Part # 4908250
$32.80 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
PlugTail® Tamper-Resistant Decorator Spec Grade Duplex Receptacle, 15 A 125 V, BlackFor detailed PlugTail® information, visit our PlugTail® Headquarters. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
Commercial
Grade
Specification
Indoor Outdoor
Indoor
Material
Thermoplastic
NEMA
5-15R
NEMA Rating
5-15R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade,Tamper-Resistant
Size
5x2x1.43
Style
Decorator
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007001341
Color
Almond
Product Series
PlugTail
Product UPC
78500700134
UNSPSC
39121406

Dimensions

Depth
7/8 Inch
Height
2-3/4 Inch
Warranty Length
1 yr
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
Certifications
  • cULus Listed
  • Federal Spec Listed
