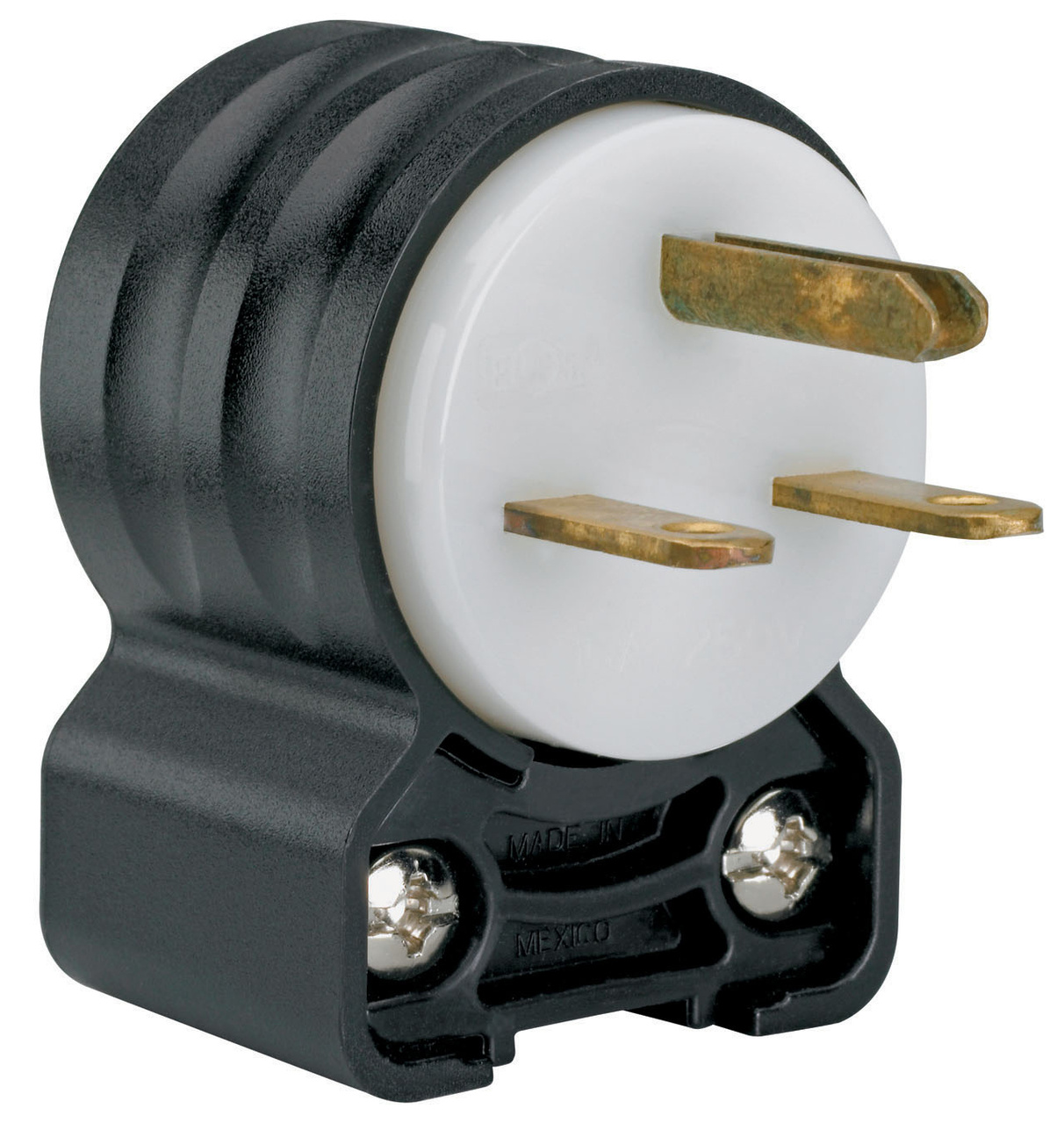

Product image for Pass & Seymour PS5666-SSAN Straight Blade Angle Plug, 2pole 3wire, 15A 250V
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour PS5666-SSAN Straight Blade Angle Plug, 2pole 3wire, 15A 250V

Manufacturer: Legrand Pass & Seymour | Catalog # PS5666SSAN | QED Part # 4908220
$42.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
Straight Blade Plug 2pole 3wire 15amp 250volt Angle

Technical Information

Amperage
15 Amp
Applications
Commercial
Conductor Size
18-10 AWG
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
6-15P
NEMA Rating
6-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
2.2"
Type
Plug
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007237139
Color
Black
Product UPC
78500723713
UNSPSC
39121402

Dimensions

Depth
1.35 Inch
Height
2.13 Inch
Warranty Length
1 yr
Width
1.53 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Angle plugs and adapters both allow for 4-position face rotation.
  • Tri-drive assembly and cord-grip screws are standard on all angle adapters.
  • Angle adapter (sold separately as catalog number EHU15AN) retrofits on all Pass & Seymour EHU-style Straight Blade plugs and connectors. Simply remove the straight handle body from the plug or connector face assembly and replace with the angle adapter.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • Federal Spec Listed
