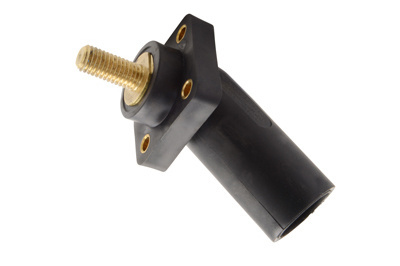

Product image for Pass & Seymour PS45MRSBBK 400 Amp 600 Volt 2/0 to 4/0 AWG Black Threaded Stud Panel Mount 45 Degrees Male Cam-Type Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour PS45MRSBBK 400 Amp 600 Volt 2/0 to 4/0 AWG Black Threaded Stud Panel Mount 45 Degrees Male Cam-Type Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # PS45MRSBBK | QED Part # 4907285
$116.40 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Pass and Seymour cam-type devices are built with top-quality materials for enhanced durability and service life, along with increased insulation protection for safety. Our angled receptacle offerings are ideal for supplying temporary electrical distribution for film and other entertainment production, theme parks, fairs, carnivals, concert venues, arenas and convention centers, mining and construction, marine shipbuilding and repair and more.

Technical Information

Amperage
400 Amp
NEMA Size
3R
Number of Poles
1 Pole
Voltage
600 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007033991
Color
Black
Product UPC
78500703399

Dimensions

Depth
1-1/8 Inch
Height
1/2 Inch
Length
2-1/4 Inch
Width
2.25 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Certifications
  • UL Listed
  • CSA Listed
Features
  • Type 3R Rated for indoor and outdoor use.
  • Solid one-piece brass contacts provide superior and consistent connection under the most extreme conditions.
  • Housing is made of Santoprene: for outstanding impact and chemical resistance.
  • Intermateable and compatible with competitive cam-type products.
  • Can be retrofitted to existing locations and power distribution systems.
  • Brass eyelets for #10-32 mounting through bolts (bolts not provided).
  • For covering patents, see www.legrand.us/patents.
