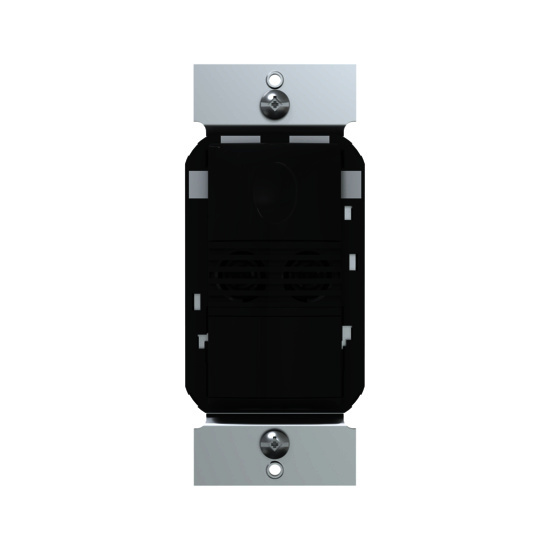

Image thumbnail 4
To:
CC:

P&S PTDSW301BK PT DT-SWTCH OCC SNSR

Manufacturer: Legrand Pass & Seymour | Catalog # PTDSW301BK | QED Part # 4907097
$286.65 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Installation / Instruction Manual
The PTDSW-301 dual technology wall switch sensor controls lights based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The PTDSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.

Technical Information

Applications
Commercial,Industrial,Multi-Dwelling Unit
Connection Type
Wired
Indoor Outdoor
Indoor
Input Voltage
120 V
Load Type
CFL,Fan Motor,Halogen,Incandescent:Fluorescent,LED
Material
Steel
Mounting Type
Wall Box
Number of Poles
3 Pole
Number of Switches
1
Sensing Range
20 sq-ft
Switch Type
Motion Sensor,SofTap
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007381740
Color
Black
Finish
Matte
Product Series
PlugTail
Product UPC
78500738174
Weight
0.38 lb

Dimensions

Height
4.8 Inch
Length
2.44 Inch
Warranty Length
5 yr
Width
3.0 in

Certifications and Compliance

Country of Origin
China
Features
  • PlugTail Devices install up to 5 times faster than traditional devices.
  • Zero-crossing for long relay life.
  • Vandal resistant lens combines precise coverage with durability.
  • Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds.
  • Test mode allows quick and easy adjustments.
  • Selectable audible alert for impending shutoff.
  • In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually; ideal for presentations.
  • Four occupancy logic options to customize control to meet application needs.
Certifications
  • RoHS Compliant
  • cULus Listed
