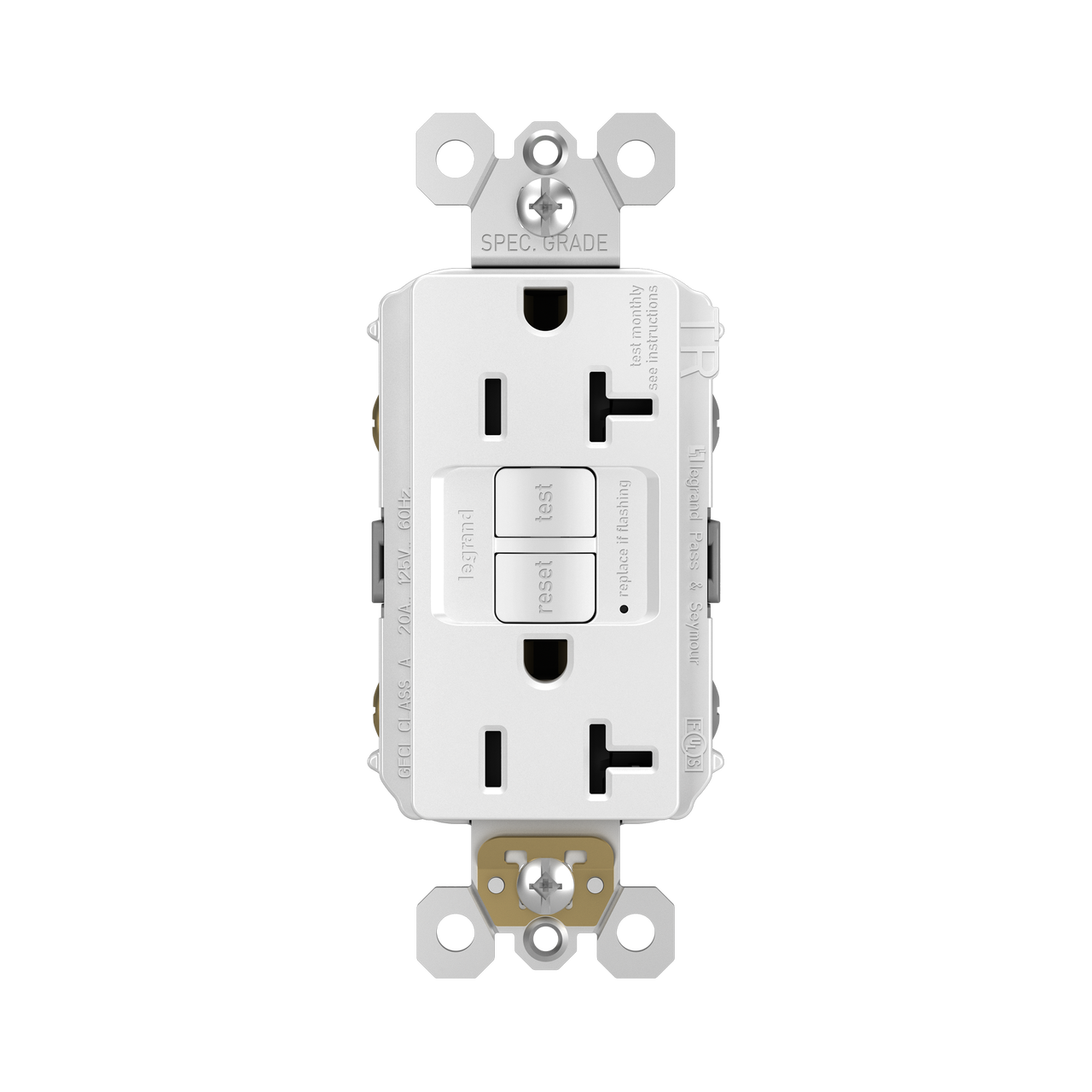

Product image for P&S 2097TRWB100 SELF-TEST GFCI RECE
Image thumbnail 0
Image thumbnail 1

To:
CC:

P&S 2097TRWB100 SELF-TEST GFCI RECE

Manufacturer: Legrand Pass & Seymour | Catalog # 2097TRWB100 | QED Part # 4907091

$64.22 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen . no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances and in commercial settings, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Technical Information

Amperage
20 A
Applications
Commercial,Multi-Dwelling Unit,Residential
Frequency
60 Hz
Indoor Outdoor
Indoor
Material
Thermoplastic
Number of Poles
2
Number of Wires
3
Outlet Type
GFCI,Tamper-Resistant
Voltage
125.0 V
Weather Resistant
No

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007378597
Color
White
Finish
Satin
Product UPC
78500737859

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
1.13 Inch
Warranty Length
1 yr
Width
1.72 in

Certifications and Compliance

Country of Origin
China
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
  • Trip Range: Trip Threshold 5+/-1mA Trip Time: 0.025 sec. nominal per UL Standard
Certifications
  • RoHS Compliant
  • cULus Listed
  • UL Listed
