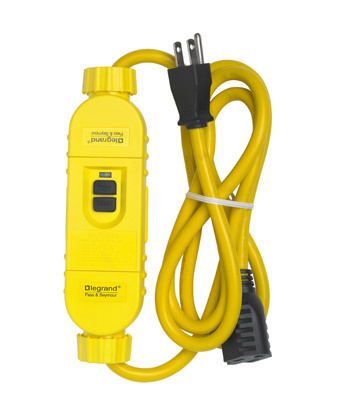

PAS 1597PC6M 15A PORT GFCI 6' MANUA

Manufacturer: Legrand Pass & Seymour | Catalog # 1597PC6M | QED Part # 4907044
$45.30 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Installation / Instruction Manual
The perfect option for safely powering portable equipment, outdoors or in, when a GFCI-protected outlet is not accessible. Use this 6-Foot In-Line Portable GFCI (Manual Reset) when plugging in drills, saws, leaf blowers, pressure washers, power painters, etc.Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.

Technical Information

Amperage
15 Amp
Applications
Commercial,Multi-Dwelling Unit,Residential
Indoor Outdoor
Outdoor
Material
Polycarbonate
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
35 degrees F
Outlet Type
GFCI,Self-Test
Voltage
125 Volt
Weather Resistant
No

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007381634
Color
Yellow
Finish
Matte
Product UPC
78500738163
Weight
1.3 lb

Dimensions

Depth
1-3/4 Inch
Height
73 Inch
Length
75-3/4 Inch
Warranty Length
1 yr
Width
2.0 in

Certifications and Compliance

Country of Origin
China
Certifications
  • RoHS Compliant
  • UL Listed
  • cULus Listed
Features
  • Protects against electrical shock caused by ground-fault occurrences.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
  • Requires portable GFCI to be manually set for use by pressing reset button upon plug in and after loss of primary power.
