PAS TR20HUSBAC 20A 125V DUP HG TR R

Manufacturer: Legrand Pass & Seymour | Catalog # TR20HUSBAC | QED Part # 4906043
$118.41 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure

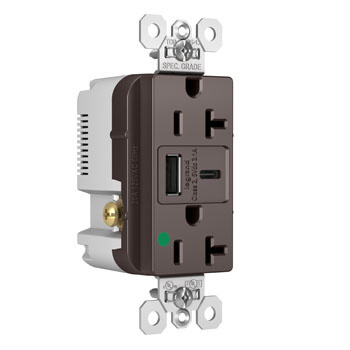

20A 125V Hospital Grade Tamper-Resistant Receptacle with two 3.1A USB charging ports Type A and C

Technical Information

Amperage
20 Amp
Applications
Commercial,Healthcare
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Dielectric Strength
1500 V
Frequency
60 Hz
Grade
Hospital
Grounding
Auto
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Box
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Hospital Grade,Tamper-Resistant,USB-Charging
Temperature Rating
-40 degrees C to 60 degrees C
Type
Tamper-Resistant, Type-A/Type-C
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007181852
Color
Brown
Environmental Conditions
UL 94 V-2 Flammability Rating
Product UPC
78500718185

Dimensions

Depth
1.425 Inch
Height
2.677 Inch
Warranty Length
1 yr
Width
1.693 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
China
Certifications
  • UL Listed
  • cULus Listed
  • Federal Spec Listed
Features
  • High Impact resistant nylon face.
