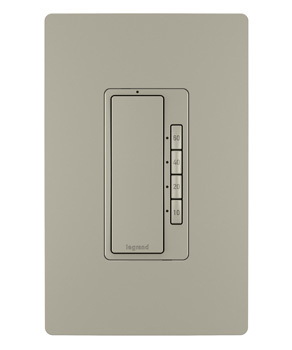

Product image for PAS RT2NICCV4 RADANT 4-BUTTON TIMER
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

PAS RT2NICCV4 RADANT 4-BUTTON TIMER

Manufacturer: Legrand Pass & Seymour | Catalog # RT2NICCV4 | QED Part # 4905854
$40.59 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
Installs easily in place of a standard light or fan switch, or older spring-wound timer and includes manual on/off through the paddle switch for added convenience. A locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Action
Single Pole
Amperage
15 Amp
Applications
Commercial,Residential
Coil Voltage
120 V
Connection Type
Back Wire,Side Wire
Contact Rating
600 W
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Polycarbonate
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Style
Rocker
Switch Type
Paddle
Type
5-Button Digital Timer
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007158380
Color
Nickel
Finish
Metallic
Product UPC
78500715838

Dimensions

Depth
1.88 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Eco-Benefit Information
  • RoHS Compliant
  • LEED Contribution: Yes
Features
  • Offers automated control of lights, fans, and motor loads, reducing energy waste and lowering costs.
  • Four preset countdown times of 60, 40, 20, 10 minutes.
  • Manual ON/OFF paddle control.
  • White LED glows when OFF for easy location in the dark.
  • Supported load types: 0-800 VA E-Ballast, MLV, ELV, CFL, LED Drivers, fluorescent or incandescent, 1/6 hp
  • Visual LED indicator light will move to next lowest indicator as the timer counts down.
  • For covering patents, see www.legrand.us/patents.
