PAS PLT26251RED PLUGLOAD TIMER 15A | Quality Electrical Distribution (QED)

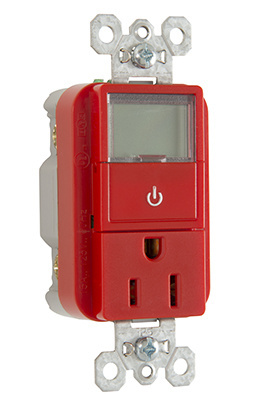

Product image for PAS PLT26251RED PLUGLOAD TIMER 15A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

PAS PLT26251RED PLUGLOAD TIMER 15A

Manufacturer: Legrand Pass & Seymour | Catalog # PLT26251RED | QED Part # 4903414
$126.44 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass and Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers electric bills.

Technical Information

Amperage
15 Amp
Applications
Commercial
Conductor Size
14-10 AWG
Connection Type
Screw-Type Terminals
Dielectric Strength
2000 V
Indoor Outdoor
Indoor
Material
Polycarbonate
NEMA
5-15R
NEMA Rating
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Energy Saving On/Off
Size
.78" (D) x 1.322" (W) x 3.281" (H)
Tc Connection
Screw terminals
Temperature Rating
60 degrees C
Type
Receptacle/Timer
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007039771
Color
Red
Environmental Conditions
UL94 V2
Product UPC
78500703977

Dimensions

Depth
1-1/4 Inch
Height
2.68 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
China
Certifications
  • UL Listed
  • cULus Listed
  • Federal Spec Listed
Features
  • Wire Size: #14 - #10 AWG Copper Conductor Only
