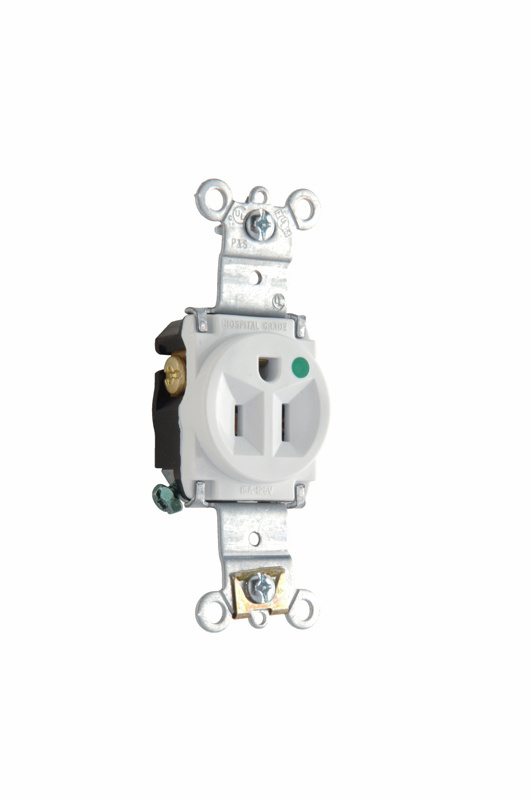

Product image for P&S TR8301BK HG RECP SGL TR B&S WRE
Image thumbnail 0
Image thumbnail 1
To:
CC:

P&S TR8301BK HG RECP SGL TR B&S WRE

Manufacturer: Legrand Pass & Seymour | Catalog # TR8301BK | QED Part # 4900193
$56.10 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Hospital Grade Single Receptacles Tamper-Resistant, Back and Side-Wire, 20A, 125A

Technical Information

Amperage
20 A
Applications
Commercial,Healthcare
Indoor Outdoor
Indoor
Number of Poles
2
Number of Wires
3
Outlet Type
Hospital Grade,Straight Blade,Tamper-Resistant
Voltage
125.0 V
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007030891
Color
Black
Product UPC
78500703089

Dimensions

Depth
1.093 Inch
Height
1.68 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
  • Federal Spec Listed
Features
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Heavy-duty, zinc-plated steel strap for added strength.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Auto-ground eliminates the necessity to terminate grounding conductor to device
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
