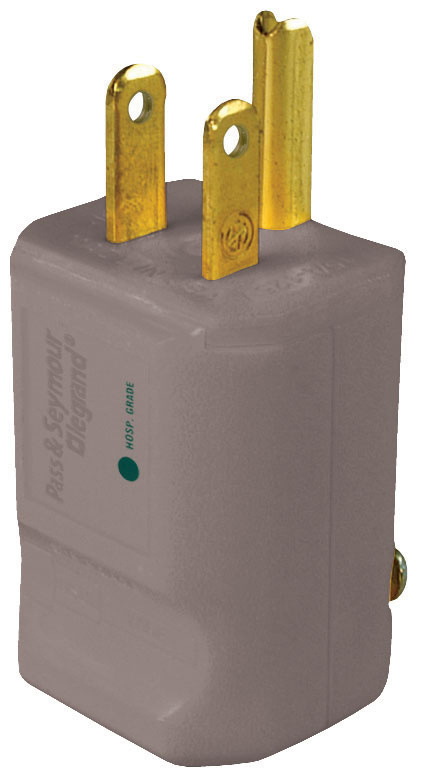

PAS PS8115 STR BLADE PLUG 2P3W 15A/

Manufacturer: Legrand Pass & Seymour | Catalog # PS8115 | QED Part # 4899838
$31.71 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
STR BLD PLUG 3W 15A125A HG

Technical Information

Amperage
15 Amp
Applications
For Commercial Use
Conductor Size
14-10 AWG
Grade
Hospital
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Recessed
NEMA
5-15P
NEMA Rating
NEMA 5-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
2"
Type
Hospital Grade, Impact Resistant, Chemical Resistant
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
MaxGrip®

General Product Info

12-Digit UPC
785007237412
Color
White
Product UPC
78500723741
UNSPSC
39121402

Dimensions

Depth
1.21 Inch
Height
1.83 Inch
Warranty Length
1 yr
Width
1.34 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
  • Federal Spec Listed
Features
  • Tough nylon construction with crush / impact resistance that exceeds hospital grade and Fed Spec requirements: arc resistance exceeds UL requirements.
  • Self-hinge swings wide open to make quick, easy work of light, clean connections. Insert conductors into terminals and tighten terminal screws: close hinge housing around cord and tighten housing screws.
  • Enclosed terminals provide solid, internally-clamped connections.
  • Molded finger grips promote safe, sure handling.
  • High-visibility yellow and orange, or gray.
  • Hospital Grade version displays the Hospital Grade green dot.
  • For covering patents, see www.legrand.us/patents.
