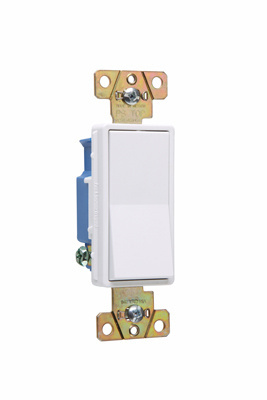

PAS 2601347W SWITCH DEC 1P 15A347V

Manufacturer: Legrand Pass & Seymour | Catalog # 2601347W | QED Part # 4899337
$30.40 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Specification Grade Decorator Switch Single-Pole, Back and Side-Wire, Canadian Decorator Switch, 15A, 347V

Technical Information

Action
Off
Actuator
Paddle, Rocker/Button
Amperage
15 Amp
Applications
Commercial,Industrial
Contact Rating
15 A
Enclosure
Box or NEMA 1 sheet steel
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
140 degrees F
Size
3.3"
Style
Decorator
Switch Type
Paddle
Type
Decorator,Switch
Voltage
347 Volt
Wattage
1 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007260021
Color
White
Finish
Matte
Product UPC
78500726002

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Warranty Length
1 yr
Width
1.3 in

Certifications and Compliance

Certifications
CSA
Country of Origin
Mexico
Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see
Certifications
  • cULus Listed
  • CSA Listed
