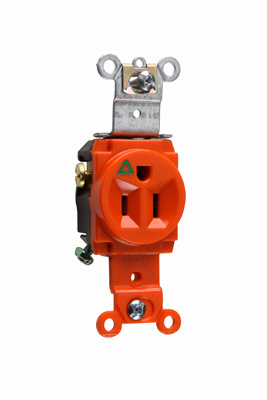

Pass & Seymour IG5261 Isolated Ground Heavy-Duty Spec Grade Single Receptacle, Back & Side Wire, 15A 125V - Orange

Manufacturer: Legrand Pass & Seymour | Catalog # IG5261 | QED Part # 4827242
$75.66 /ea
ea
Log in or register to view your price, purchase history, and more!
Check another branch
Primary Spec Sheet Product Brochure
Isolated Ground Heavy-Duty Spec Grade Single Receptacle Back & Side Wire 15amp 125volt Orange

Technical Information

Amperage
15 Amp
Applications
For Commercial Applications
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Dielectric Strength
2000 V
Grade
Specification
Grounding
Isolated Ground
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Wall
NEMA
5-15R
NEMA Rating
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Isolated Ground,Straight Blade
Size
1.32 L x 1.093 W x 3.68 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy-Duty
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007652611
Color
Orange
Product UPC
78500765261
UNSPSC
39121406

Dimensions

Depth
1.093 Inch
Height
1.68 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
Features
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Corrosion-resistant plated steel strap.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cUL Listed
  • Federal Spec Listed
