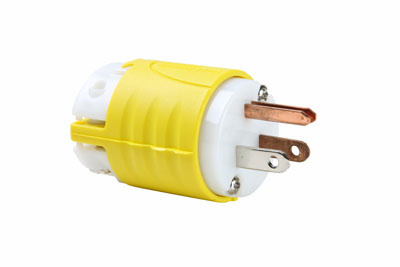

Product image for Pass & Seymour GR5266-X Straight Blade Plug 2Pole 3Wire 15Amp 125Volt Corrosion Resistant
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour GR5266-X Straight Blade Plug 2Pole 3Wire 15Amp 125Volt Corrosion Resistant

Manufacturer: Legrand Pass & Seymour | Catalog # CR5266X | QED Part # 4786357
$55.99 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Straight Blade Plug 2pole 3wire 15amp 125volt Corrosion Resistant

Technical Information

Amperage
15 Amp
Applications
Commercial
Conductor Size
18-10 AWG
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-15P
NEMA Rating
5-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
2.8"
Type
Plug
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007526783
Color
Yellow
Product UPC
78500752678
UNSPSC
39121402

Dimensions

Length
1.752 Inch
Warranty Length
1 yr
Width
1.516 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Unit arrives completely ready-to-wire, cuts installation time significantly.
  • Nylon housing provides impact and chemical resistance.
  • Rugged two-piece cord grip provides more uniform cord retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
  • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
  • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
  • Cord-grip screws recessed to protect installer against screwdriver head slippage.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
