Pass & Seymour 5362CH-LA 20A 125V Half-Controlled Duplex Receptacle, Back & Side Wire - Light Almond | Quality Electrical Distribution (QED)

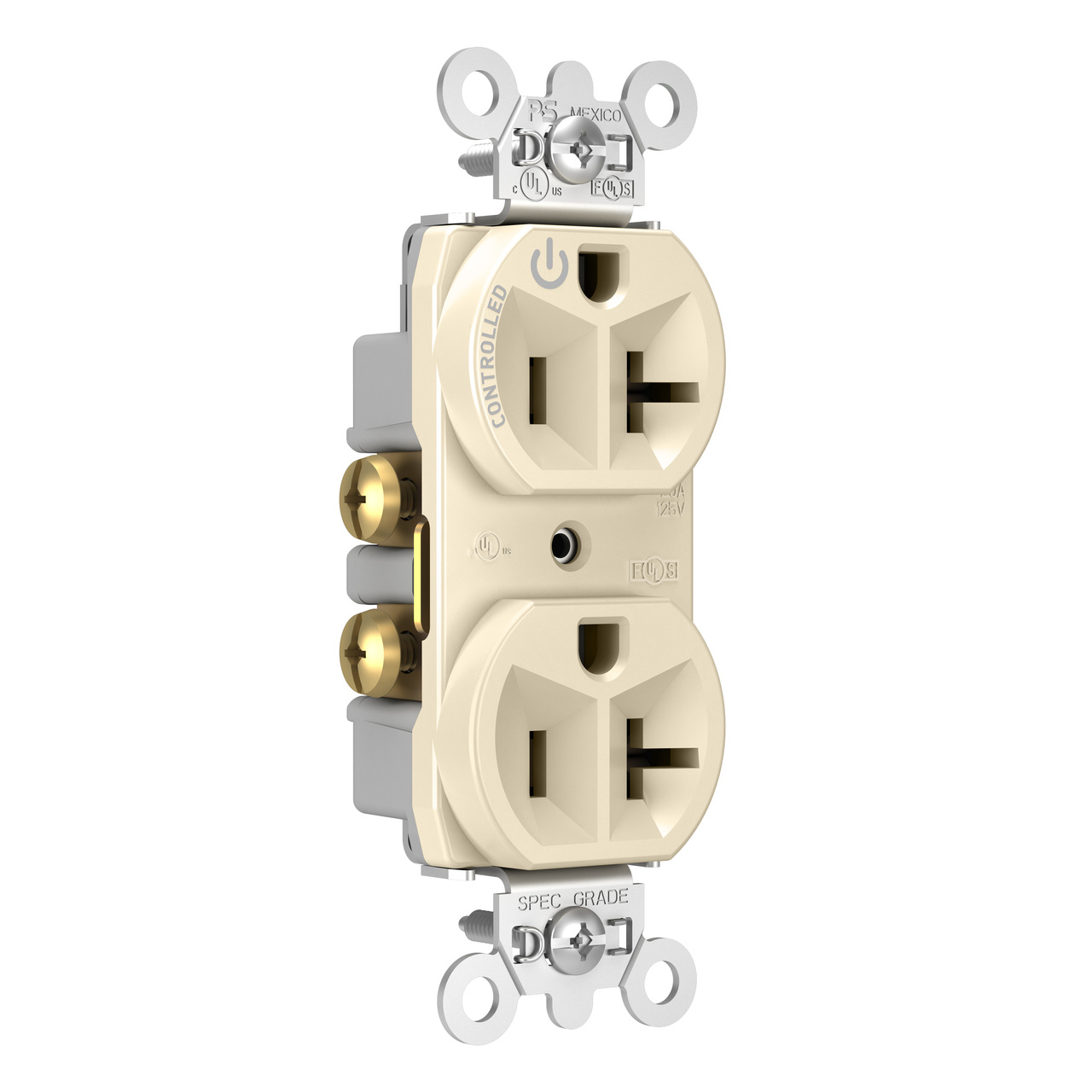

Product image for Pass & Seymour 5362CH-LA 20A 125V Half-Controlled Duplex Receptacle, Back & Side Wire - Light Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour 5362CH-LA 20A 125V Half-Controlled Duplex Receptacle, Back & Side Wire - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # 5362CHLA | QED Part # 4753778
$5.83 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Technical Information

Amperage
20 Amp
Applications
Commercial
Indoor Outdoor
Indoor
Number of Poles
2 Pole
Number of Wires
4 Wire
Operating Temperature
40 degrees F
Outlet Type
Energy Saving On/Off,Straight Blade
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007038347
Color
Almond
Product UPC
78500703834

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Can be wired to any number of system-based or stand-alone plug load control solutions.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
Certifications
  • cULus Listed
  • Federal Spec Listed
