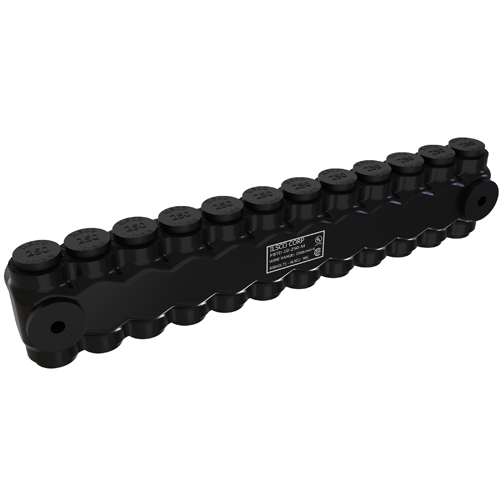

Product image for ILSCO PBTD-10-250-M INSUL AL MECH (
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

ILSCO PBTD-10-250-M INSUL AL MECH (

Manufacturer: Ilsco | Catalog # PBTD-10-250-M | QED Part # 4725418
$603.23 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Nimbus Mountable Insulated Multi-Tap Connector Dual Side Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting hole spacing 10.23 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Contains DE-OX®, 10 conductors, 10 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
290 Amp
Applications
Mountable Insulated Multi-Tap Connector Dual Side Entry
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.266 in
Number of Conductors
10
Number of Holes
2 Hole
Number of Ports
10
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PBTM:MOUNTABLE INS BLK
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus

General Product Info

12-Digit UPC
783669000948
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366900094
Weight
1.529 lb

Dimensions

Height
2.197 Inch
Length
11.394 Inch
Width
2.318 in
