Pass & Seymour IG4710 Turnlok Single Receptacle, 3wire, 15A 125V Isolated Ground | Quality Electrical Distribution (QED)

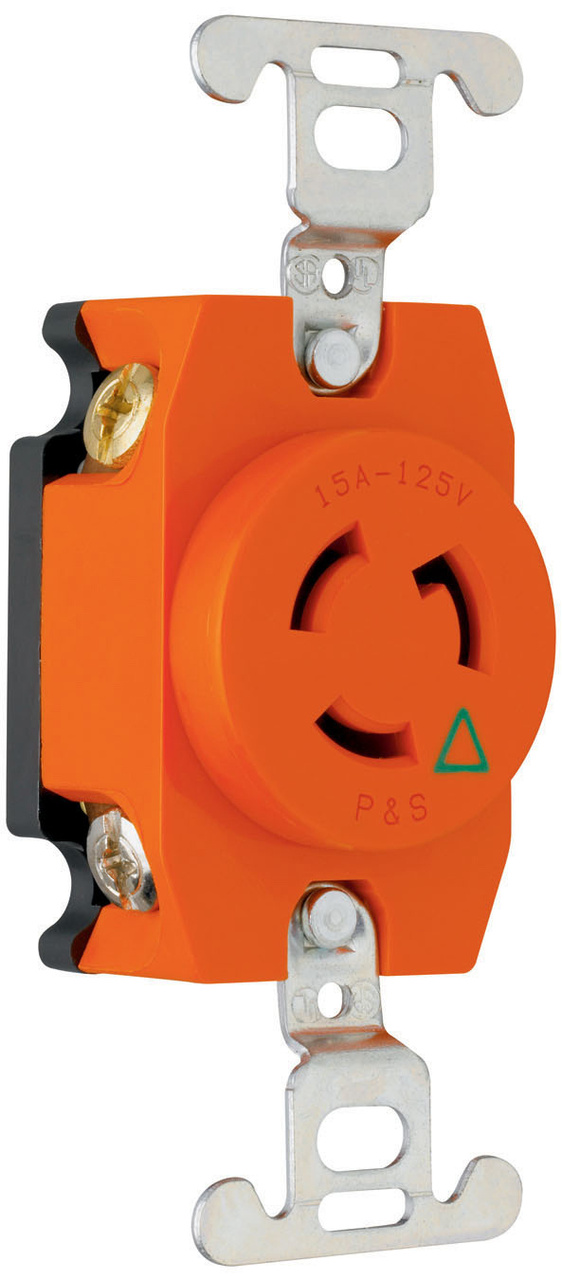

Product image for Pass & Seymour IG4710 Turnlok Single Receptacle, 3wire, 15A 125V Isolated Ground
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour IG4710 Turnlok Single Receptacle, 3wire, 15A 125V Isolated Ground

Manufacturer: Legrand Pass & Seymour | Catalog # IG4710 | QED Part # 4669046
$92.19 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Turnlok Single Receptacle 3wire 15amp 125volt Isolated Ground

Technical Information

Amperage
15 Amp
Applications
Commercial
Conductor Size
18-10 AWG
Grade
Commercial
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Flush
NEMA
L5-15R
NEMA Rating
L5-15R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Isolated Ground,Locking
Size
4.1"
Type
Isolated Ground
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Turnlok®

General Product Info

12-Digit UPC
785007647105
Color
Black and Orange
Finish
Gloss
Product UPC
78500764710
UNSPSC
39121403

Dimensions

Depth
1 Inch
Height
2-1/4 Inch
Warranty Length
1 yr
Width
1.437 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • One-piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability. Accepts #14-#10 AWG.
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
Compare
