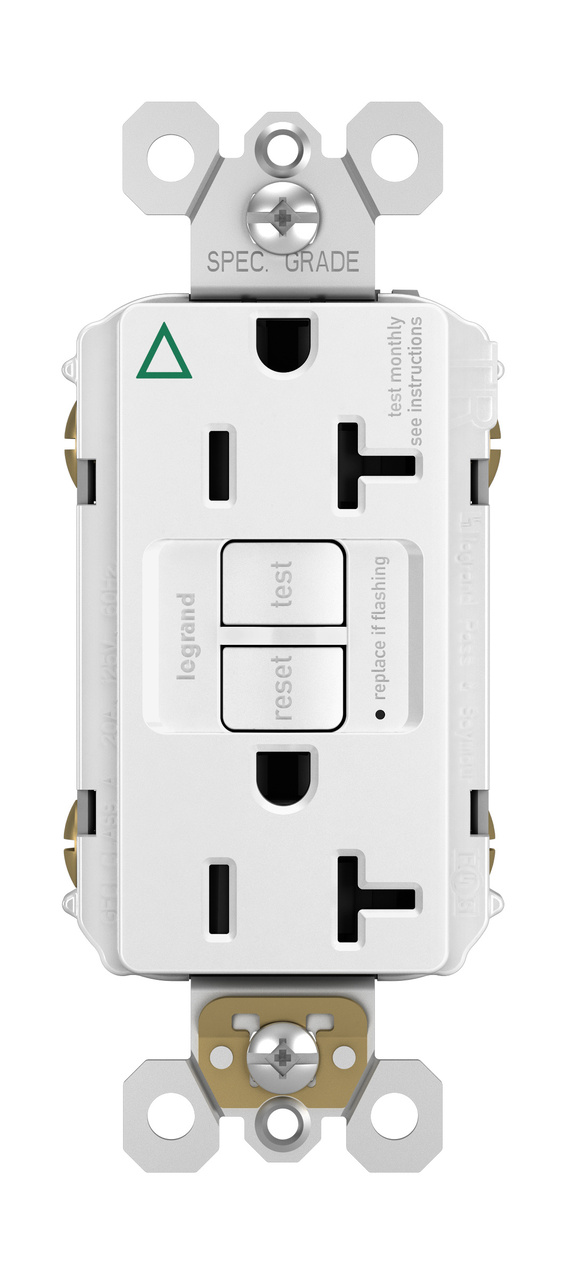

Product image for Pass & Seymour 2097-IGTRW 20A 125V Self-Test Tamper-Resistant Isolated Ground GFCI White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Pass & Seymour 2097-IGTRW 20A 125V Self-Test Tamper-Resistant Isolated Ground GFCI White

Manufacturer: Legrand Pass & Seymour | Catalog # 2097IGTRW | QED Part # 4619084
$66.04 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial,Multi-Dwelling Unit,Residential
Connection Type
Back Wire,Side Wire
Frequency
60 Hz
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplatic
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Tamper-Resistant
Tc Connection
Back and Side Wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007048896
Color
White
Environmental Conditions
95 PCT
Product UPC
78500704889

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Spec-Grade GFCI self-test
  • One-piece, brass, triple-wipe power contacts for lasting retention.
Certifications
  • cULus Listed
