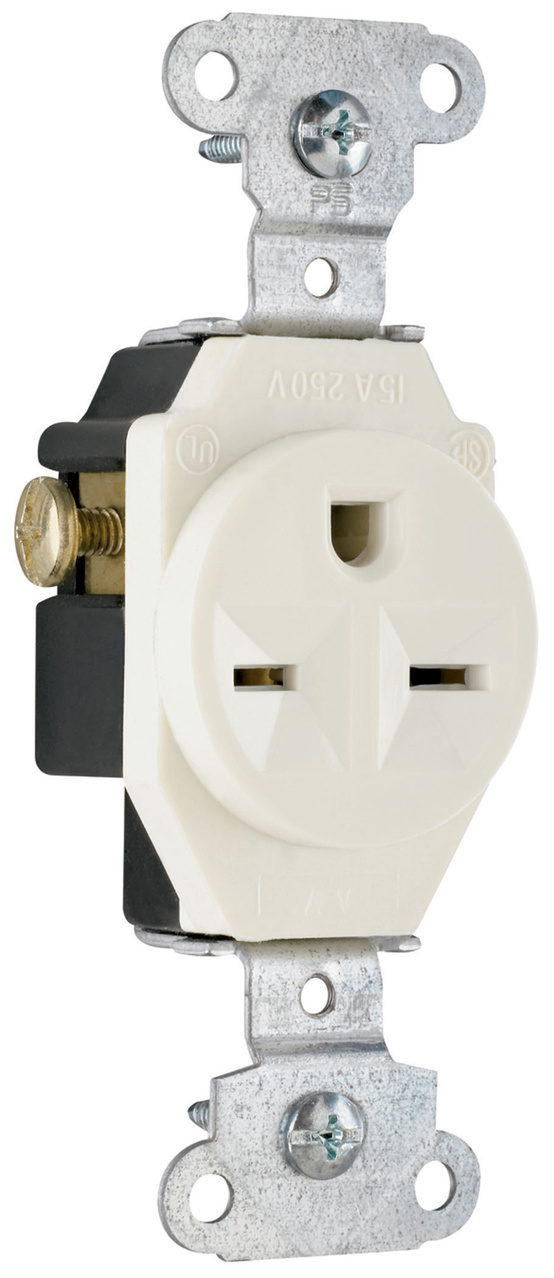

Pass & Seymour 5651-LA Heavy-Duty Spec Grade Single Receptacle, Side Wire, 15A 250V - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # 5651LA | QED Part # 4605911
$17.43 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Side Wire 15amp 250volt Light Almond

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Federal Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
6-15R
NEMA Rating
6-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Size
1.32 L x 1.08 W x 3.68 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Single Receptacles
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007565157
Color
Almond
Product UPC
78500756515
UNSPSC
39121406

Dimensions

Depth
1.08 Inch
Height
3.28 Inch
Warranty Length
1 yr
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • One-piece heat-treated triple-wipe brass power contacts.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
