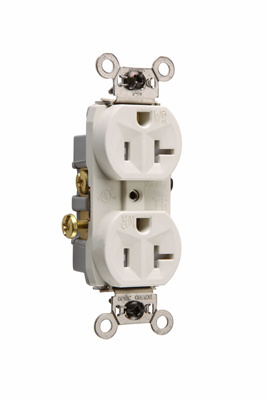

Pass & Seymour WR20-TRLA Light Almond Weather Resistant Commercial Grade Receptacles

Manufacturer: Legrand Pass & Seymour | Catalog # WR20TRLA | QED Part # 4605909
$7.82 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Tamper-Resistant, Weather-Resistant Commercial Grade Receptacles, 20A, 125V

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Side Wire
Dielectric Strength
1500 V
Grade
Commercial
Indoor Outdoor
Outdoor
Material
Nylon
NEMA
5-20R
NEMA Rating
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Tamper-Resistant,Weather-Resistant
Size
1.322 L x 1.130 W x 3.281 H In
Style
Duplex
Tc Connection
Side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007242560
Color
Almond
Product UPC
78500724256
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Certifications
  • cULus Listed
