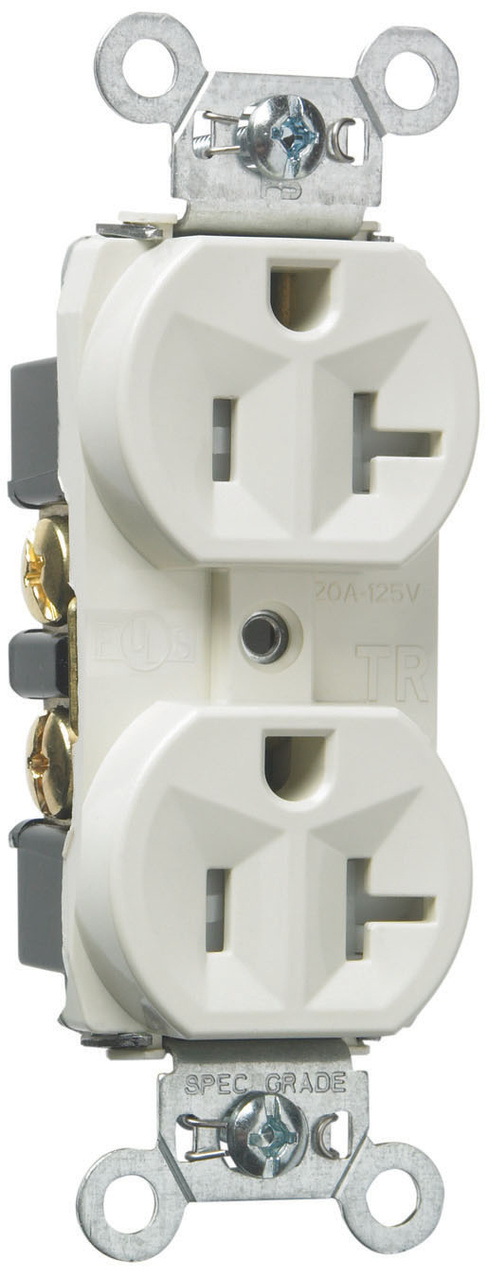

PAS TR5362LA RECEP DUP TR B+S WIRE

Manufacturer: Legrand Pass & Seymour | Catalog # TR5362LA | QED Part # 4605847
$9.19 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Tamper-Resistant Hard Use Spec Grade Receptacle, Back and Side Wire, 20A, 125V

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-20R
NEMA Rating
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade,Tamper-Resistant
Size
1.322 L x 1.130 W x 3.281 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007243765
Color
Almond
Finish
Matte
Product UPC
78500724376
UNSPSC
39121406

Dimensions

Depth
1.13 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
