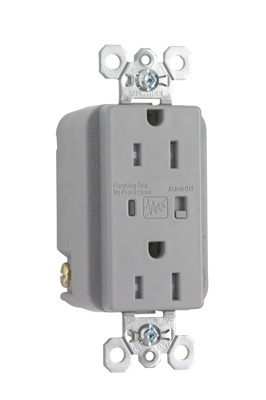

SPD RECP TR 15A/125V ALARM GRY

Manufacturer: Legrand Pass & Seymour | Catalog # TR5262GRYSP | QED Part # 4605839
$163.99 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Tamper-Resistant Extra Heavy-Duty Surge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 15amp 125volt, White.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
Commercial
Connection Type
Back Wire,Side Wire
Duty Rating
Extra Heavy Duty
Frequency
60 Hz
Grade
Specification
Indicator
Audible Alarm,LED
Indoor Outdoor
Indoor
Material
Thermoplastic
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-20degrees C to 55degrees C (-4 to 131degrees F
Outlet Type
Straight Blade,Surge Protected,Tamper-Resistant
Size
.94" Depth x 1.75" Width x 3.82" Height
Tc Connection
Side & Back Wire
Type
Duplex
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007019438
Class
IG
Color
Gray
Product UPC
78500701943
UNSPSC
39121406

Dimensions

Depth
1.4 Inch
Height
2-3/4 Inch
Warranty Length
1 yr
Width
1.7 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
