Pass & Seymour TR26342-I 20 Amp 125 Volt Ivory Side Wire Tamper Resistant Decorator Specification Grade Receptacle | Quality Electrical Distribution (QED)

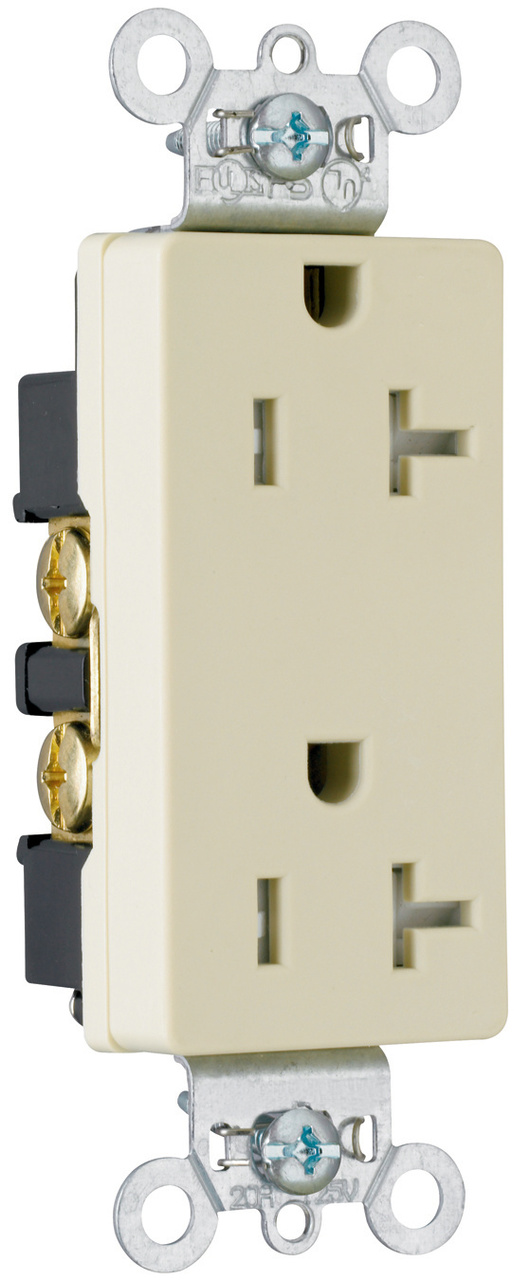

Product image for Pass & Seymour TR26342-I 20 Amp 125 Volt Ivory Side Wire Tamper Resistant Decorator Specification Grade Receptacle
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour TR26342-I 20 Amp 125 Volt Ivory Side Wire Tamper Resistant Decorator Specification Grade Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # TR26342I | QED Part # 4570301
$7.97 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Tamper-Resistant Decorator Spec Grade Receptacle, Side Wire Only, 20A, 125V

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Side Wire
Contact Material
0.032 in 260 Brass
Dielectric Strength
2000 VAC
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Tamper-Resistant
Style
Decorator
Temperature Rating
-40 to 60degrees C
Type
Tamper-Resistant, Decorator
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007034875
Color
Ivory
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
78500703487
UNSPSC
39121406

Dimensions

Depth
0.93 Inch
Height
3.28 Inch
Warranty Length
1 yr
Width
1.37 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • AC receptacles available in 15 and 20A, 125V.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive steel terminal screws. Side wire only.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
