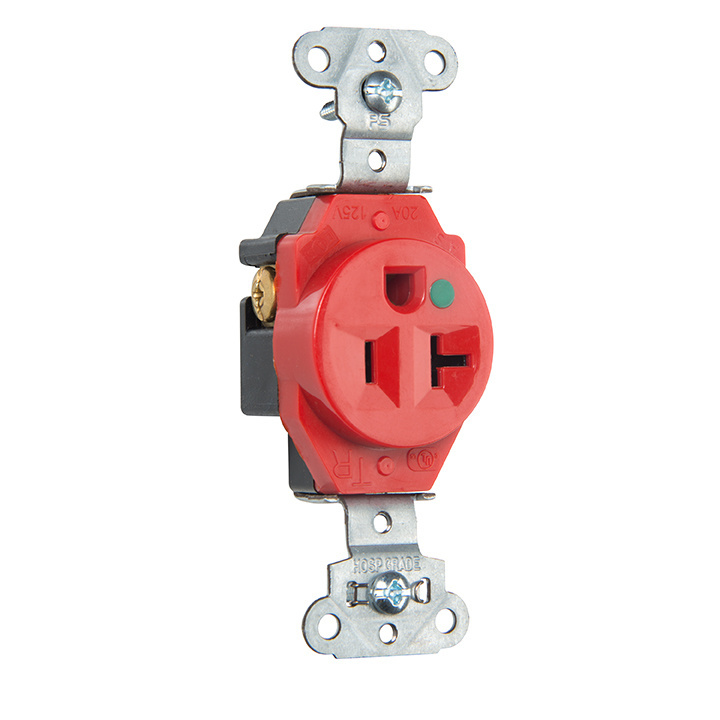

Pass & Seymour TR-8301RED 20A 125V Hospital Grade Single Receptacle, Tamper Resistant, Back & Side Wire - Red

Manufacturer: Legrand Pass & Seymour | Catalog # TR8301RED | QED Part # 4526847
$54.71 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
These single receptacles feature durable, triple-wipe, single-piece, brass contacts and heavy-gauge steel straps, plated for enhanced corrosion resistance. Strap locks into the receptacle body to prevent pull-outs, and each features a ground clip for automatic ground connection to metal boxes. Screw-pressure-plate back wiring speeds installation and enables optional side wiring.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial,Healthcare
Indoor Outdoor
Indoor
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Hospital Grade,Straight Blade,Tamper-Resistant
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007030877
Color
Red
Product UPC
78500703087

Dimensions

Depth
1.093 Inch
Height
1.68 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Heavy-duty, zinc-plated steel strap for added strength.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Auto-ground eliminates the necessity to terminate grounding conductor to device
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
