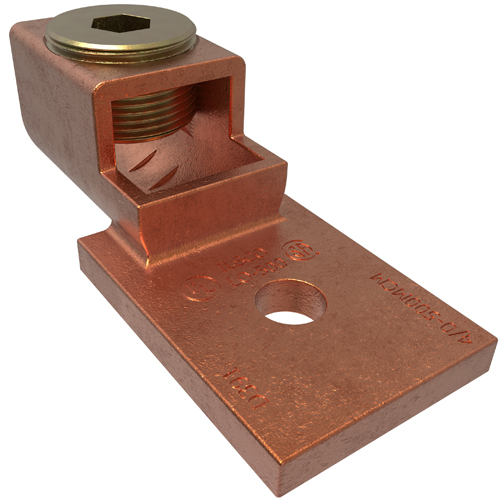

Ilsco LO-500 Copper Mechanical Lug, Conductor Range 500-4/0, 1 Port, 1 Hole, 3/8in Bolt Size, Seamless, UL, CSA

Manufacturer: Ilsco | Catalog # LO-500 | QED Part # 4515081
$188.48 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 500 kcmil - 4/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For Terminating Connector
Conductor Material
Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.406 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Slotted Hex
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669573107
Color
Copper
Product UPC
78366957310
Weight
0.572 lb

Dimensions

Height
1.223 Inch
Length
3-1/2 Inch
Width
1.5 in

Certifications and Compliance

Country of Origin
India
