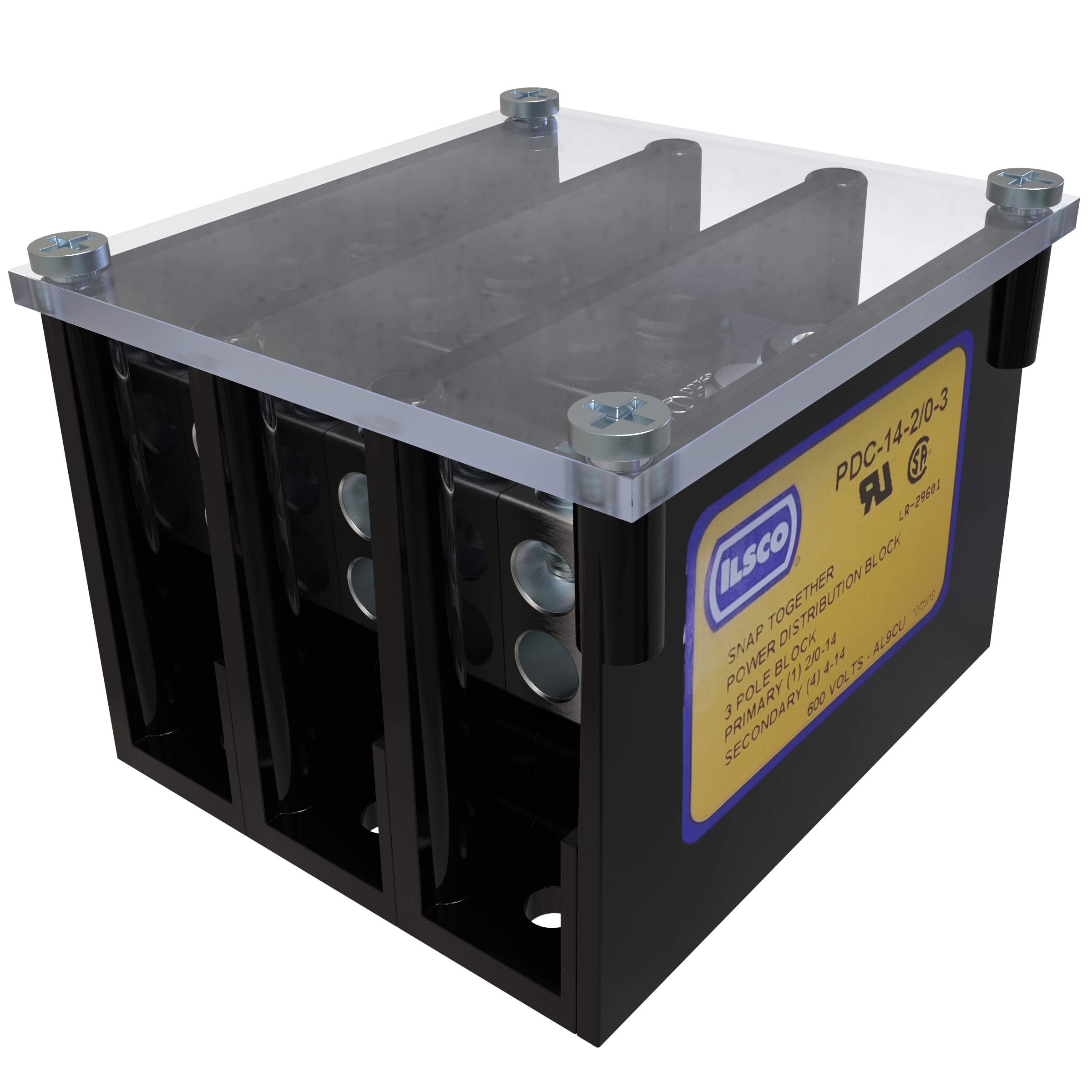

Product image for Ilsco PDC-14-2/0-3 Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 2/0-14, Load Range 4-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, 3 Pole, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco PDC-14-2/0-3 Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 2/0-14, Load Range 4-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, 3 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDC-14-2/0-3 | QED Part # 4493589
$246.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 2.25 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 5 conductors, Drive Type Main 3/16 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Black, 3 poles, 1 ports per pole primary, 4 ports per pole secondary,

Technical Information

Amperage
175 Amp
Applications
Power Distribution Block, Modular Design
Enclosure
Lexan
Material
Aluminum
Number of Conductors
5
Number of Poles
3 Pole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDC:SNAP BLOCKS (SMALL)
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669943108
Color
Black
Finish
Tin Plated
Product UPC
78366994310
