ILS ELT-6 CU CMP (R)300-500 (T)3/0-

Manufacturer: Cadweld | Catalog # ELT-6 | QED Part # 4413685
$114.95 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Primary Spec Sheet

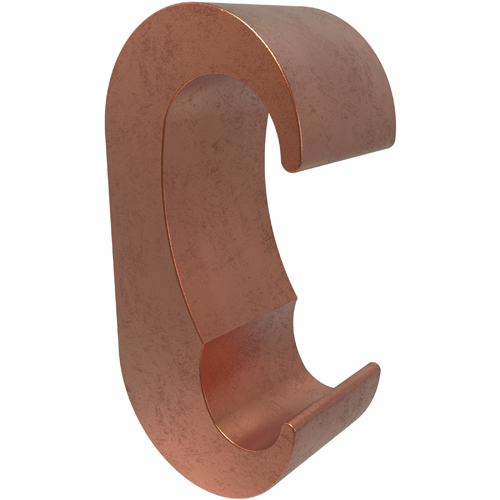

ILSCO Copper Compression Grounding E Crimp, Copper material, Bare plated connector,Copper Primary Conductor 500 kcmil - 300 kcmil, Copper Secondary Conductor 250 kcmil - 3/0 Str, 3/4 nominal ground rod, primary color Copper, die index 1011,

Technical Information

Applications
For Ground Grid Applications
Conductor Material
Copper
Conductor Type
Stranded
Direct Burial?
Yes
Material
Copper
Size
L:1.328;W:0.875;H:2.672 IN
Temperature Rating
NA degrees C
Type
ELT:COPPER E CRIMP

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669257403
Color
Copper
Product UPC
78366925740
Used With
Ground Rod
Weight
1.033 lb

Dimensions

Height
2.672 Inch
Length
7/8 Inch
Width
0.875 in

Certifications and Compliance

Country of Origin
India
