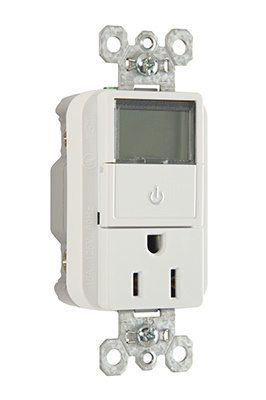

Pass & Seymour PLT26251-W 15A 125V Plugload Timer - White

Manufacturer: Legrand Pass & Seymour | Catalog # PLT26251W | QED Part # 4336119
$134.95 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of P&S Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.

Technical Information

Amperage
15 Amp
Applications
Commercial use
Conductor Size
14-10 AWG
Connection Type
Screw-Type Terminals
Dielectric Strength
2000 V
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Box
NEMA
5-15R
NEMA Rating
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Energy Saving On/Off
Size
.78" (D) x 1.322" (W) x 3.281" (H)
Tc Connection
Screw terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Plugload
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007040128
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
78500704012

Dimensions

Depth
1-1/4 Inch
Height
2.68 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
China
Certifications
  • UL Listed
  • cULus Listed
  • Federal Spec Listed
Features
  • Wire Size: #14 - #10 AWG Copper Conductor Only
