Burndy YA31LB Bellug-250/262.6-1/2Stud | Quality Electrical Distribution (QED)

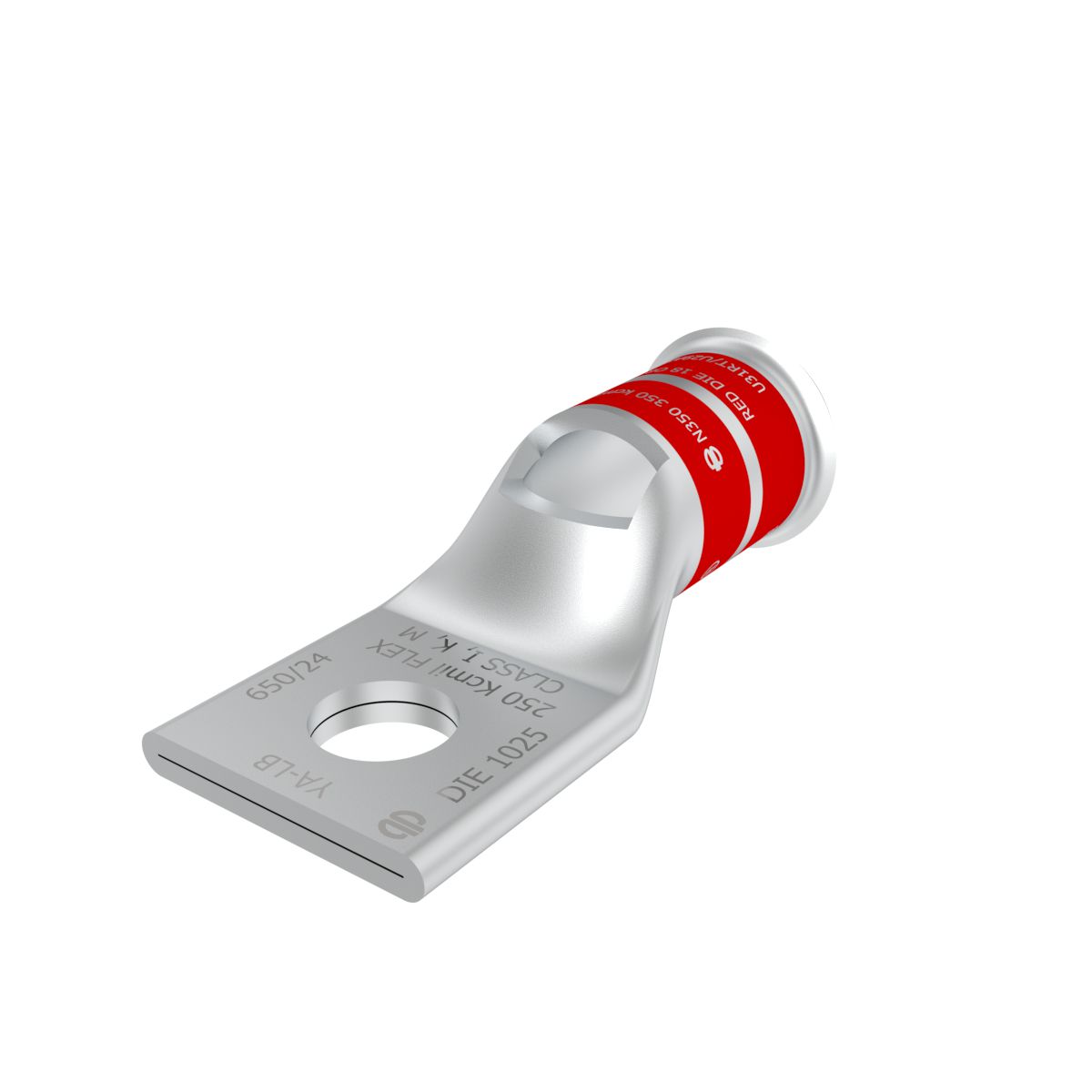

Product image for Burndy YA31LB Bellug-250/262.6-1/2Stud
Image thumbnail 0
Image thumbnail 1
To:
CC:

Burndy YA31LB Bellug-250/262.6-1/2Stud

Manufacturer: Hubbell-Burndy | Catalog # YA31LB | QED Part # 4279088
$51.01 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Cu Comp Terminal Flex Cond, 1 Hole/W/InspWindow, 350 kcmil Code, N350 Navy, 250 kcmil Flex, 262.6 kcmil(650/#24)DLO, 600 V-35 kV, 1/2" Stud, Belled End.

Technical Information

Applications
For Flex Conductor
Cable Size
Flexible Copper: 250, 262.2 KCMIL, Welding Cable, Class M (#34 STR): 262.2 KCMIL (6384 Strands), Locomotive: 262.2 KCMIL (650/24 Strands), Battery Cable, Class K (#30 STR): 262.2 KCMIL (2499 Strands), Class I (#24 STR): 262.2 KCMIL (637 Strands)
Color Coding
Red
Conductor Material
Copper
Conductor Size
350 kcmil
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.5 in
Type
Standard Belled Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810504963
Finish
Tin Plated
Product UPC
78181050496

Dimensions

Height
0.88 Inch
Hole Size
13 mm
Length
2.93 Inch
Overall Length
2.93 in
Width
1.29 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
