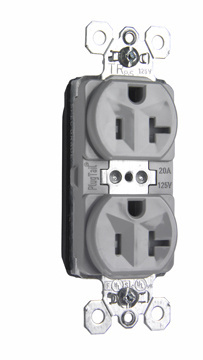

Image thumbnail 2
To:
CC:

P&S PTTR5362GRY DUP RECEP TR 20A 12

Manufacturer: Legrand Pass & Seymour | Catalog # PTTR5362GRY | QED Part # 4273357
$17.67 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 7 to 11 days
Primary Spec Sheet Product Brochure
PlugTail Tamper-Resistant Spec Grade Duplex Receptacle 20amp 125volt, BrownFor detailed PlugTail information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
12 AWG
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-20R
NEMA Rating
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade,Tamper-Resistant
Size
1.5 L x .625 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007008487
Color
Gray
Finish
Matte
Product Series
PlugTail
Product UPC
78500700848
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
2-3/4 Inch
Warranty Length
1 yr
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Smooth wall plate.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
  • Federal Spec Listed
