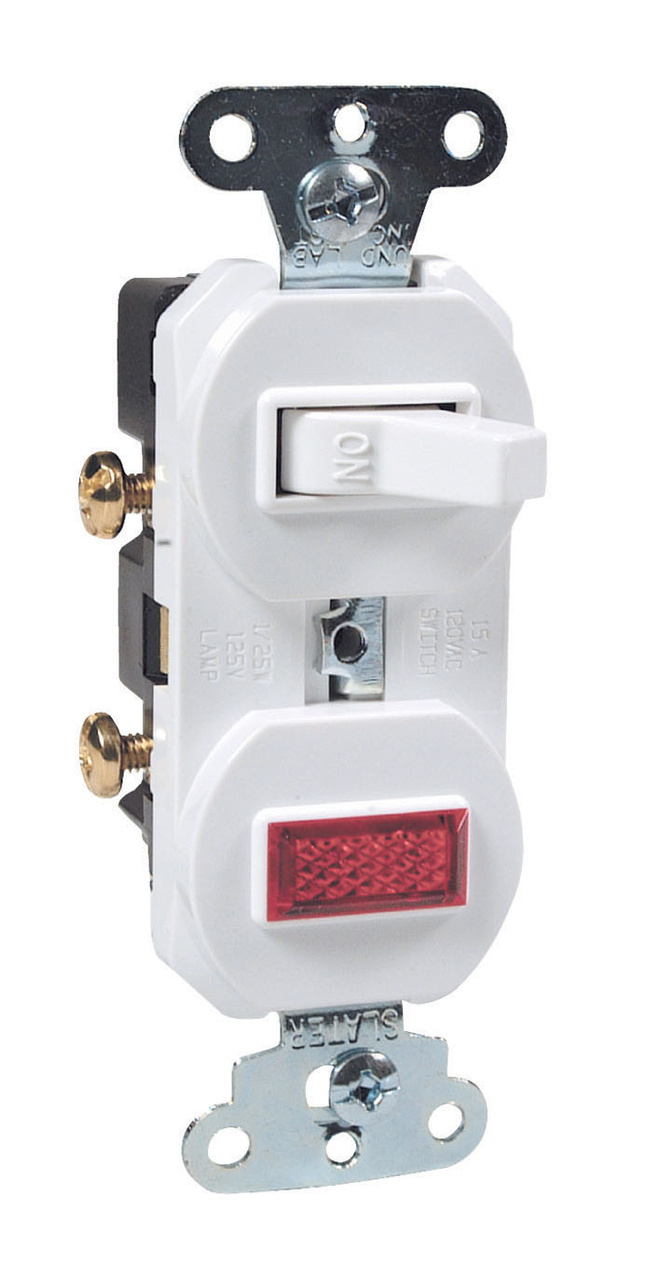

Pass & Seymour 692-W 15 amps, 120V -Single Pole, Single Pilot Light, Combination Switch, Non-Grounding - White

Manufacturer: Legrand Pass & Seymour | Catalog # 692-W | QED Part # 4214225
$2,154.70 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Product Catalog Page Installation / Instruction Manual CAD Drawing #1
Single Pole, Single Pilot Light, Combination Switch, 15 amps, 120/125 volts, White.

Technical Information

Action
Pilot Light,SP
Actuator
Toggle
Amperage
15 Amp
Applications
For Residential/Commercial Application
Conductor Size
14-10 AWG
Connection Type
Non-grounding,Side Wire
Contact Configuration
N-O
Contact Rating
120 V
Grade
Residential
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall, Flush
NEMA
15A
NEMA Rating
5-15R
Number of Gangs
1
Number of Phases
1
Number of Poles
1 Pole
Number of Switches
2
Number of Wires
3
Operating Cycles
30000.0
Operating Temperature
Maximum continuous +60degrees C, minimum -30degrees C
Outlet Type
Pop-Out,Tamper-Resistant
Size
1.32 L x 0.94 W x 4.06 H In
Standard
CSA C22.2 No. 85,UL E23018,cULus
Switch Type
On/Off Toggle
Tc Connection
Side wire, non-grounding
Temperature Rating
-30 to 60 degrees C
Type
Halogen-Free
Voltage
120 Volt
Wattage
0.04 Watt
Wire Size
14 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007692020
Color
White
Product UPC
78500769202
UNSPSC
39111803
Used With
20/30 A Turnlok Locking Plugs
Weight
0.187 lb

Dimensions

Depth
0.94 Inch
Diameter
2.31 in
Height
3.28 Inch
Length
5.04 in
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
