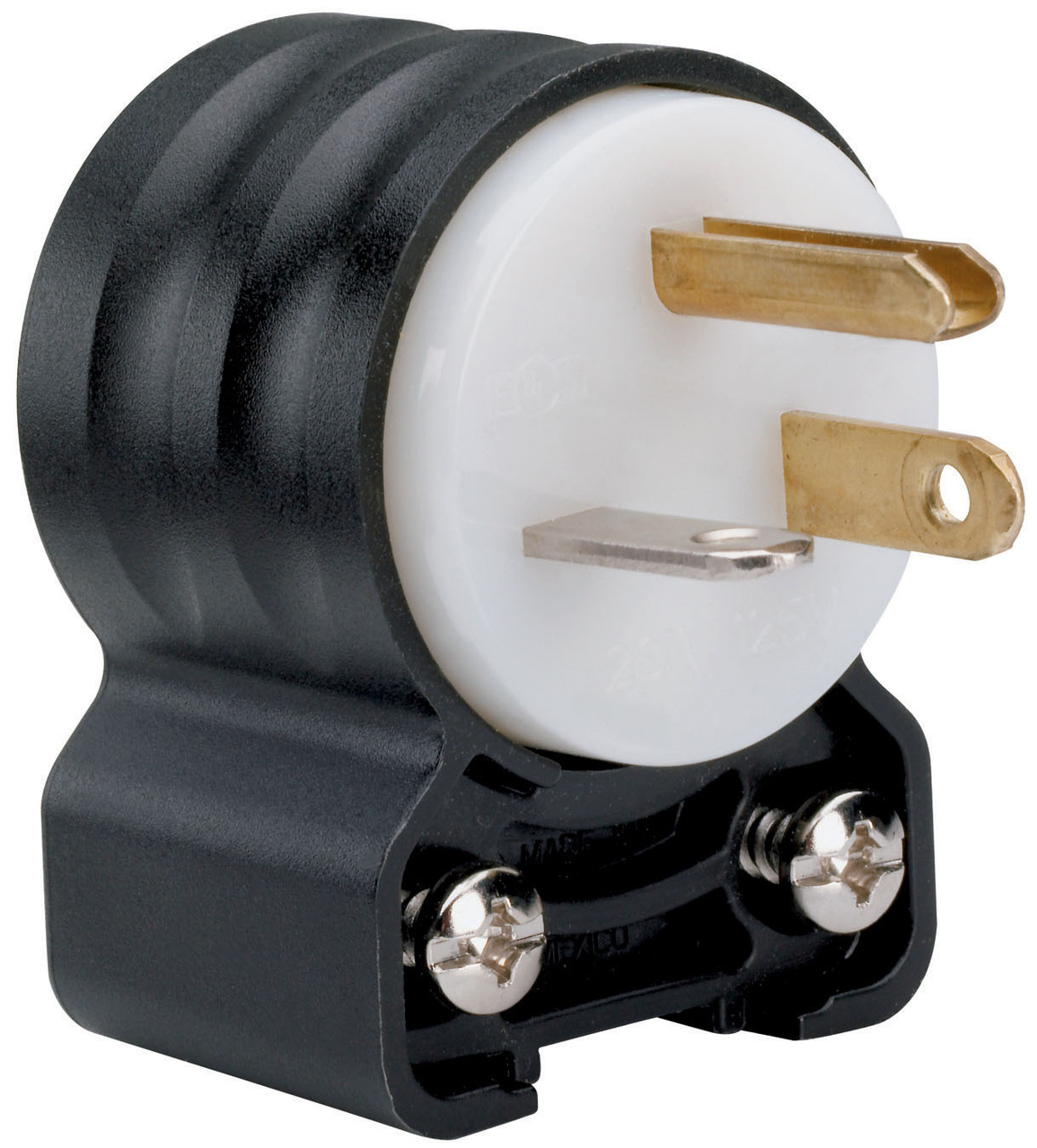

Image thumbnail 1
To:
CC:

Pass & Seymour PS5366-SSAN Straight Blade Plug 2Pole 3Wire 20Amp 125Volt Angle

Manufacturer: Legrand Pass & Seymour | Catalog # PS5366-SSAN | QED Part # 4211305
$45.15 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
Straight Blade Plug 2pole 3wire 20amp 125volt Angle

Technical Information

Amperage
20 Amp
Applications
Industrial
Conductor Size
14-1/0 AWG
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-20P
NEMA Rating
5-20P
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
2.2"
Type
Plug
Voltage
125 Volt
Wire Size
14 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007236972
Color
Black
Product UPC
78500723697
UNSPSC
39121402

Dimensions

Depth
1.35 Inch
Height
2.13 Inch
Warranty Length
1 yr
Width
1.53 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
  • Federal Spec Listed
Features
  • Angle plugs and adapters both allow for 4-position face rotation.
  • Tri-drive assembly and cord-grip screws are standard on all angle adapters.
  • Angle adapter (sold separately as catalog number EHU15AN) retrofits on all Pass & Seymour EHU-style Straight Blade plugs and connectors. Simply remove the straight handle body from the plug or connector face assembly and replace with the angle adapter.
  • For covering patents, see www.legrand.us/patents.
