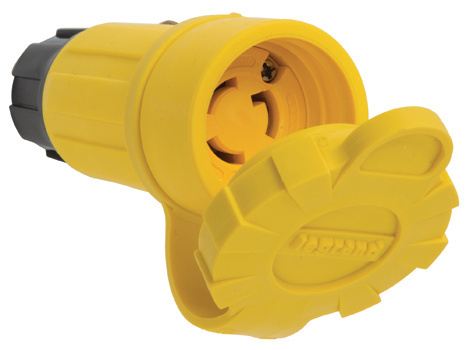

Image thumbnail 2
To:
CC:

Pass & Seymour 25W47 Turnlok® Watertight Connector, 15A 125V, L5-15R, NEMA 4X/6P, IP65/66/67 - Yellow

Manufacturer: Legrand Pass & Seymour | Catalog # 25W47 | QED Part # 4209446
$86.32 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Product Brochure Primary Spec Sheet
Locking Watertight Connector, 15amp 125volt, NEMA Configuration L5-15, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Technical Information

Amperage
15 Amp
Applications
For Commercial Applications
Conductor Size
18-10 AWG
Connection Type
Screw Less Terminal
Indoor Outdoor
Indoor,Outdoor
Material
Rubber
NEMA
L5-15R
NEMA Rating
NEMA L5-15R
Number of Conductors
3
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Size
4"
Type
Watertight, Gland Nut
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007114249
Color
White
Product UPC
78500711424
UNSPSC
39121403

Dimensions

Diameter
1.81 Inch
Length
4 Inch
Warranty Length
1 yr
Width
1.85 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.
Certifications
  • CSA Listed
  • UL Listed
