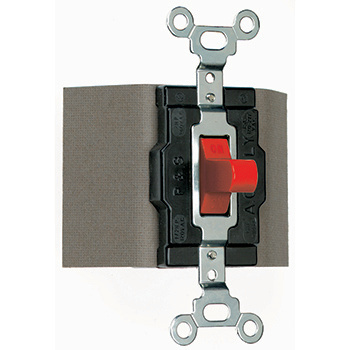

Product image for Pass & Seymour 1250-RED Manual Controller, Single Pole, Double Throw, 15A 120/277V, Momentary Contact - Red
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Pass & Seymour 1250-RED Manual Controller, Single Pole, Double Throw, 15A 120/277V, Momentary Contact - Red

Manufacturer: Legrand Pass & Seymour | Catalog # 1250RED | QED Part # 4200305
$37.32 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Single Pole, Double Throw Switch. 15 Amps, 120/277VAC rating, Brown.Tested to 3 Amps, 24Vdc rating.

Technical Information

Amperage
15 Amp
Applications
Commercial,Residential
Contact Configuration
No
Contact Rating
15amp, 120/277vac
Enclosure
Box or NEMA 1 sheet steel
Material
Nylon
Mounting Type
Box
Number of Poles
1 Pole
Size
3.3"
Switch Type
Momentary
Type
Switch
Voltage
120/277 Volt
Wattage
1 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007045185
Color
Red
Finish
Matte
Product UPC
78500704518

Dimensions

Depth
1.469 Inch
Height
3.281 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw and Double Pole-Double Throw.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • UL Listed
  • CSA Listed
  • cULus Listed
