PAS TR8300HRED TR COMPCT HG DUP REC

Manufacturer: Legrand Pass & Seymour | Catalog # TR-8300HRED | QED Part # 4199433
$11.42 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Primary Spec Sheet

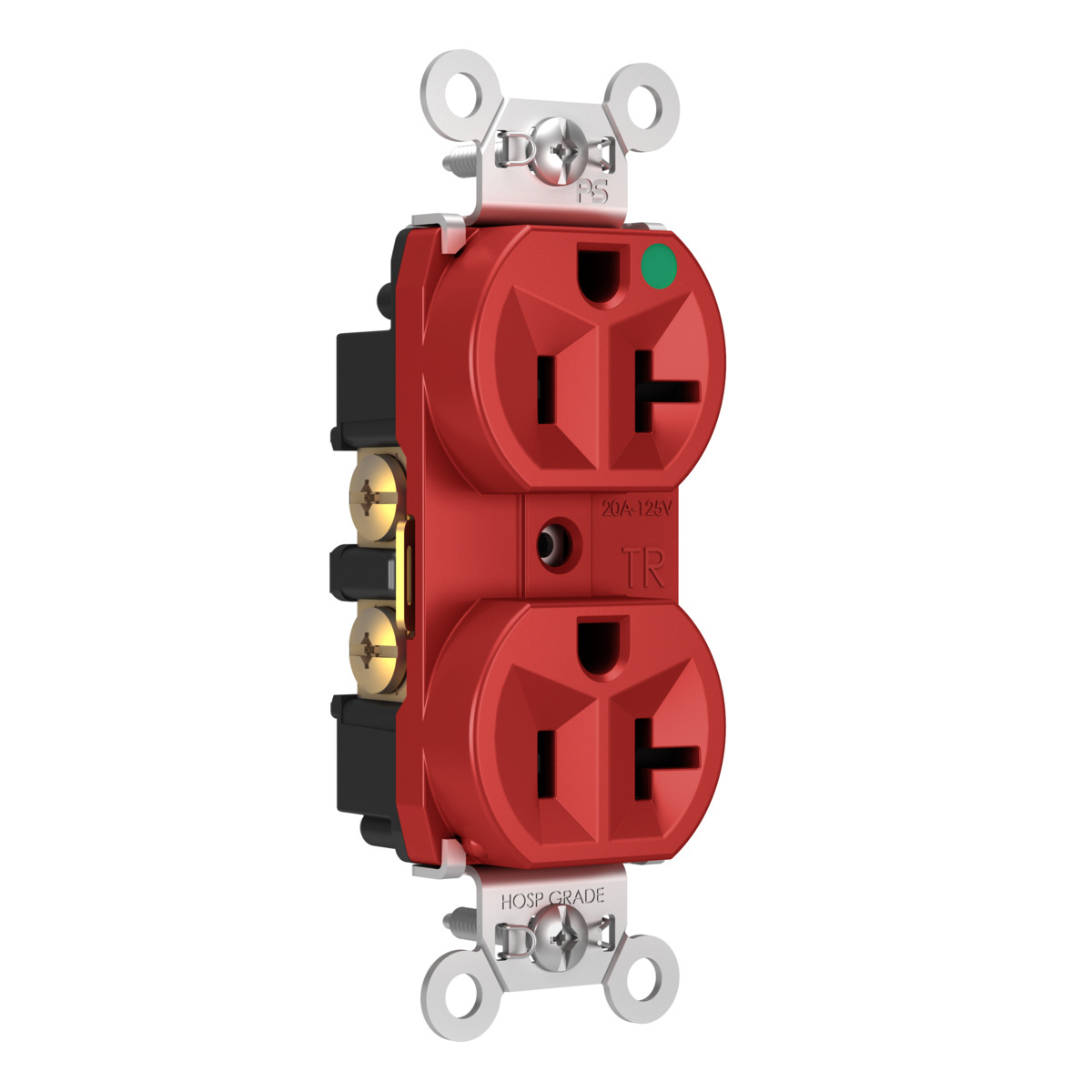

Hospital-Grade Tamper-Resistant Compact Design Receptacle, Back and Side Wire, 20A, 125V

Technical Information

Amperage
20 Amp
Applications
Commercial,Healthcare
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Indoor Outdoor
Indoor
Material
Thermoplastic
NEMA
5-20R
NEMA Rating
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Hospital Grade,Tamper-Resistant
Size
.78" (D) x 1.322" (W) x 3.281" (H)
Tc Connection
Side & Back Wired
Temperature Rating
60 degrees C
Type
Tamper-Resistant Hospital Grade Duplex Receptacle
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007035179
Color
Red
Finish
Matte
Product UPC
78500703517

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Impact-resistant nylon face.
  • Stainless steel mounting screws also resist corrosion.
  • Easily accessible break-off line contact connecting tab for split circuit wiring.
  • Corrosion-resistant, zinc-plated steel strap is locked in.
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
  • High strength thermoplastic back body.
  • Compact design for easy installation.
  • Tri-drive terminal and mounting screws.
  • Meets National Electrical Code Tamper-Resistant requirements.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Wire Size: #14 - #10 AWG Copper Conductor Only
Certifications
  • cULus Listed
