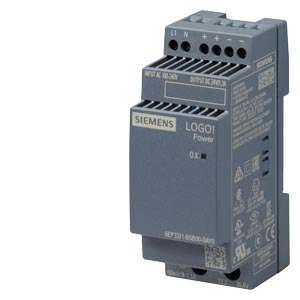

Siemens 6EP33316SB000AY0 LOGO 24V,1.3A

Manufacturer: Siemens | Catalog # 6EP33316SB000AY0 | QED Part # 4185671

$122.22 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
LOGO!Power 24 V / 1.3 A stabilized power supply input: 100-240 V AC output: 24 V DC/ 1.3 A *Ex approval no longer available* The miniature LOGO!Power power supply units in the same design as the LOGO!8 modules offer great performance in the smallest of spaces. The high degree of efficiency across the entire load range and the low power loss in no-load operation ensure efficient operation. The wide-range input for single-phase supply systems and for DC power networks as well as the power reserve when switching on capacitive loads satisfy the requirements of numerous applications. The large temperature range and extensive certifications make them suitable for universal use. The reliable power supplies with their flat, stepped-profile enclosure can be integrated extremely flexibly, for example in distribution boards. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.

Technical Information

Amperage
1.3 Amp
Applications
Power supply LOGO!Power
Efficiency
86%
Frequency
47-63 Hz
Input Voltage
24 VAC/VDC
IP Rating
IP20
Mounting Type
35 x 15 mm DIN Rail
Number of Phases
1 Phase
Power Rating
31.2 W
Standard
UL 508,CSA C22.2 No. 60950-1,File E197259,CE,CSA,UL 60950-1,CB Approval,CSA C22.2 No. 107.1,UL
Temperature Rating
-25 to 70 degrees C
Terminal Type
Screw
Type
1-Phase
Voltage
24 Volt
Wattage
31.2 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
LOGO Power

General Product Info

12-Digit UPC
804766468964
Environmental Conditions
-25 to 70 C
Product UPC
80476646896
Weight
0.311 lb

Dimensions

Depth
53 mm
Height
3.543 Inch
Length
53 mm
Width
36 mm

Certifications and Compliance

Country of Origin
Austria
