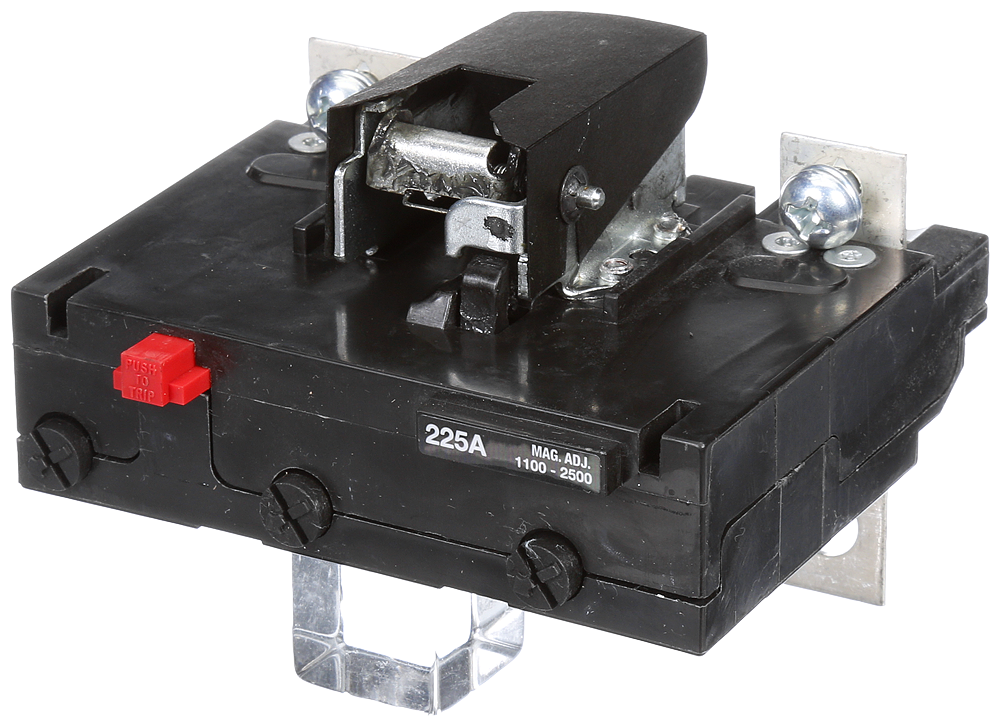

Product image for Siemens FD63T225 600 Volt 225 Amp 22 kA 3-Pole FD-Frame Circuit Breaker Trip Unit
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens FD63T225 600 Volt 225 Amp 22 kA 3-Pole FD-Frame Circuit Breaker Trip Unit

Manufacturer: Siemens | Catalog # FD63T225 | QED Part # 4171024
$679.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 225A, Interchangeable, 40°C Trip Unit Only, Thermal Magnetic, Standard IC Rating

Technical Information

Actuator
Varying
Amperage
225 Amp
Applications
40C Trip Unit Only
Current
225 Amp
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR,UL
Tc Connection
N/A
Trip Range
1100-2500
Trip Type
Thermal-Magnetic
Type
Thermal-Magnetic
Voltage
500 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643211988
Product UPC
78364321198
Weight
1.185 lb

Dimensions

Height
4.1 Inch
Length
4.9 Inch
Width
5.300 in

Certifications and Compliance

Country of Origin
Mexico
